دیتاشیت HSP051-4M5

مشخصات دیتاشیت

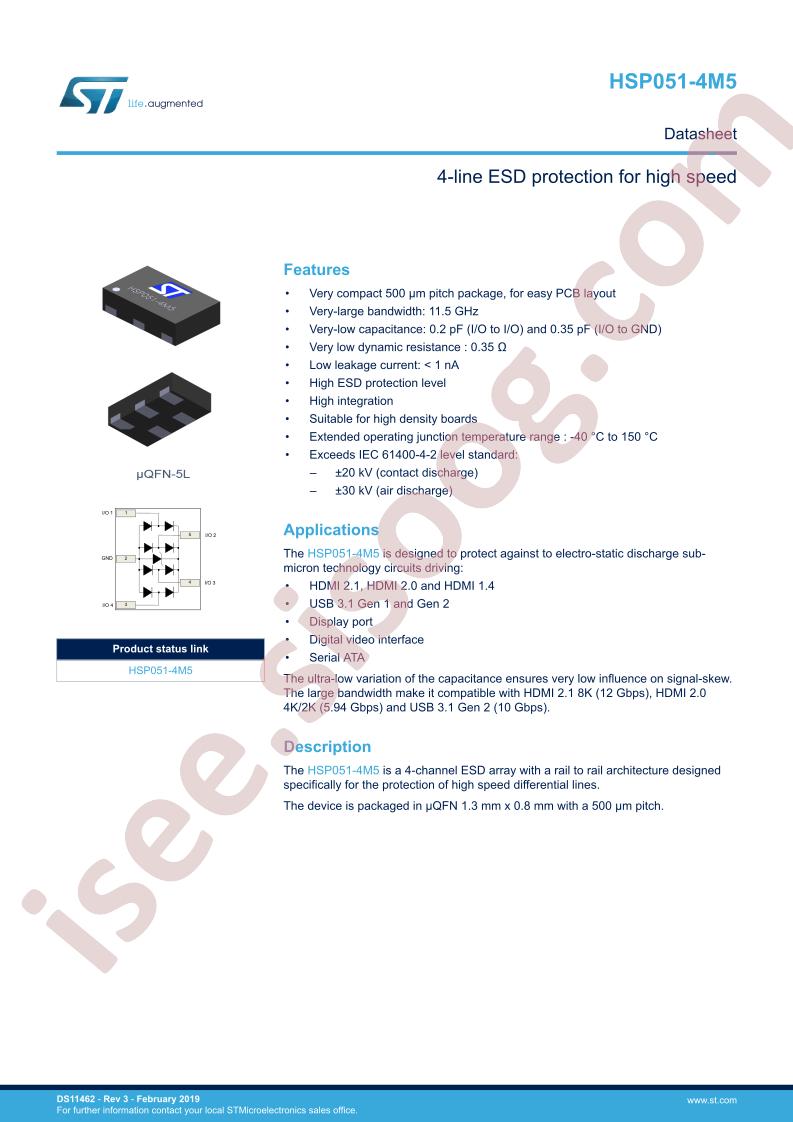

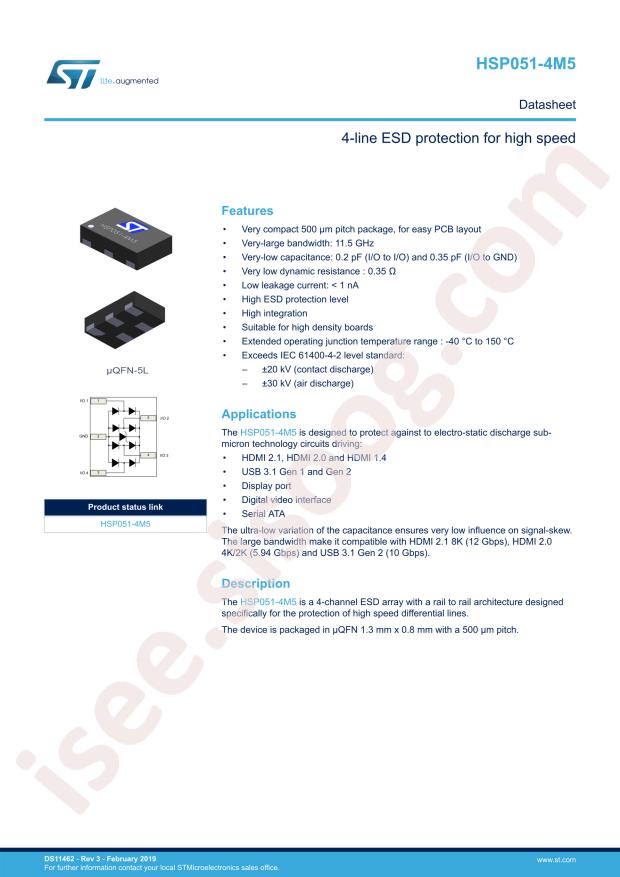

دانلود دیتاشیت HSP051-4M5 Datasheet	HSP051-4M5 Datasheet Datasheet

Manufacturer: STMicroelectronics
Series: HSP
Packaging: Cut Tape (CT)
Part Status: Active
Type: Steering (Rail to Rail)
Unidirectional Channels: 4
Voltage - Reverse Standoff (Typ): 5V (Max)
Voltage - Breakdown (Min): 5.7V
Voltage - Clamping (Max) @ Ipp: 11.3V
Current - Peak Pulse (10/1000µs): 3A (8/20µs)
Power - Peak Pulse: -
Power Line Protection: Yes
Applications: HDMI, USB
Capacitance @ Frequency: 0.6pF @ 200MHz ~ 2.5GHz
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 5-XFDFN
Supplier Device Package: 5-uQFN (1.3x0.8)
Base Part Number: HSP051
detail: 11.3V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 5-uQFN (1.3x0.8)
