SN74LV4052AQPWRQ1 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت SN74LV4052AQPWRQ1	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments SN74LV4052AQPWRQ1
Turn-on time: 18ns
Turn-off time: 18ns
Supply Voltage: 2V~5.5V
Switch Circuit: 单刀四掷(SP4T)
Number of Channels: 2
On-State Resistance (Max): 100Ω

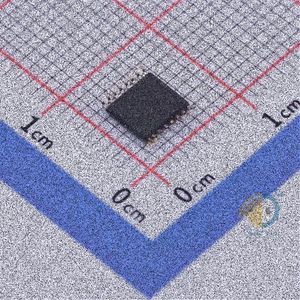

Package: TSSOP-16
Manufacturer: Texas Instruments
Current - Leakage (IS(off)) (Max): 1µA
Voltage - Supply, Single (V+): 2V ~ 5.5V
Voltage - Supply, Dual (V±): -
Number of Circuits: 2
Channel-to-Channel Matching (ΔRon): 20Ohm (Max)
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Part Status: Active
Supplier Device Package: 16-TSSOP
Switch Time (Ton, Toff) (Max): 18ns, 18ns
Packaging: Tape & Reel (TR)
-3db Bandwidth: 50MHz
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Crosstalk: -45dB @ 1MHz
Base Part Number: SN74LV40
Series: Automotive, AEC-Q100
Channel Capacitance (CS(off), CD(off)): -
Multiplexer/Demultiplexer Circuit: 4:1
Charge Injection: -
detail: 2 Circuit IC Switch 4:1 100Ohm 16-TSSOP
