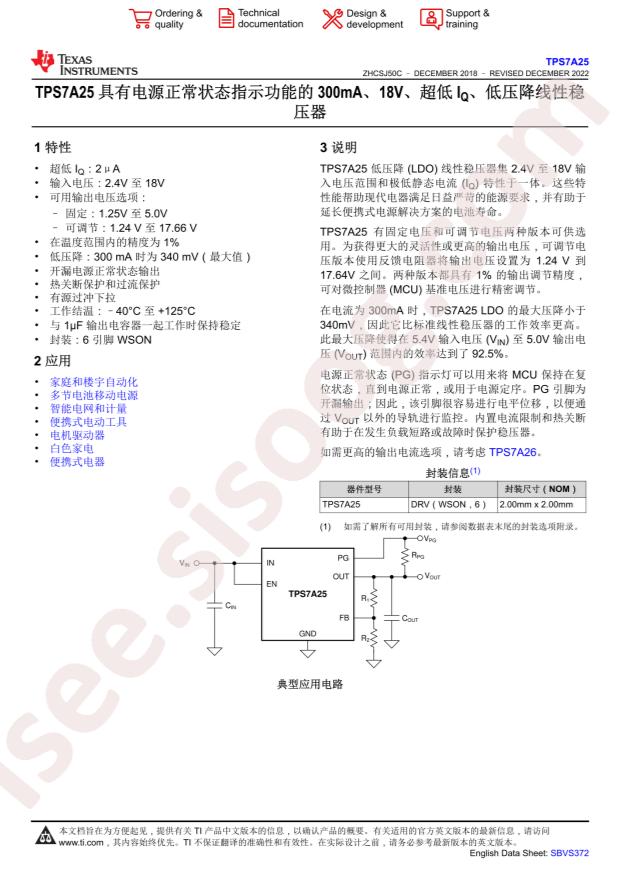

TPS7A2533DRVR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

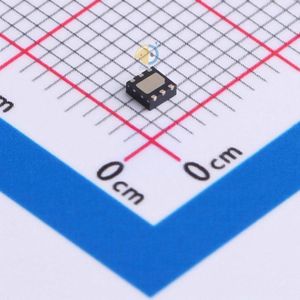

TPS7A2533DRVR
|
|
حجم فایل
|
79.849
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
37
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS7A2533DRVR
-
Output Current:
300mA
-
Output Voltage:
3.3V
-
Dropout Voltage:
0.21V@(300mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
18V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
4.5uA
-
Package:
DFN-6(2x2)
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
18V
-
Current - Quiescent (Iq):
4.5µA
-
Output Configuration:
Positive
-
Base Part Number:
TPS7A2
-
Voltage - Output (Min/Fixed):
3.3V
-
Protection Features:
Over Current, Over Temperature
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
PSRR:
75dB ~ 52dB (10Hz ~ 1kHz)
-
Supplier Device Package:
6-WSON (2x2)
-
Package / Case:
6-WDFN Exposed Pad
-
Number of Regulators:
1
-
Part Status:
Active
-
Output Type:
Fixed
-
Control Features:
Enable, Power Good
-
Voltage - Output (Max):
-
-
Mounting Type:
Surface Mount
-
Voltage Dropout (Max):
0.21V @ 300mA
-
Current - Output:
300mA
-
detail:
Linear Voltage Regulator IC 1 Output 300mA 6-WSON (2x2)
