SMA6F15AY دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SMA6F15AY |
|---|---|
| حجم فایل | 67.39 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت SMA6F15AY |
دانلود دیتاشیت |
|---|
سایر مستندات

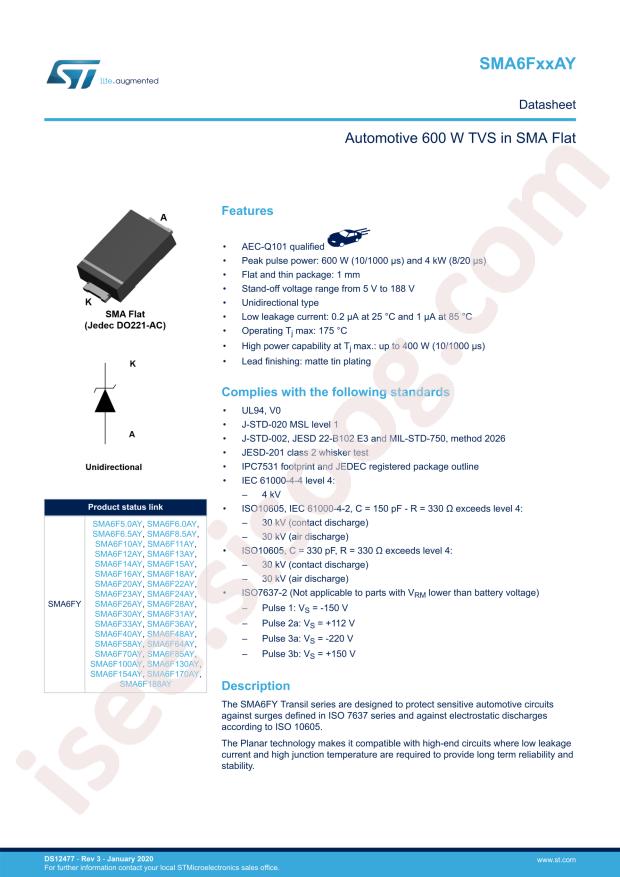

SMA6FxxAY Datasheet 15 pages
مشخصات فنی
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/TVS
- Datasheet: STMicroelectronics SMA6F15AY
- Breakdown Voltage: 16.7V
- Maximum Clamping Voltage: 24.4V
- Reverse Leakage Current (Ir): 0.2uA
- Reverse Stand-Off Voltage (Vrwm): 15V
- Peak Pulse Current (Ipp)@10/1000us: 25.1A
- Peak Pulse Power Dissipation (Ppp)@10/1000us: 600W
- Package: SMA-flat
- Manufacturer: STMicroelectronics
- Series: Automotive, AEC-Q101, SMA6F
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 15V
- Voltage - Breakdown (Min): 16.7V
- Voltage - Clamping (Max) @ Ipp: 24.4V
- Current - Peak Pulse (10/1000µs): 25.1A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-221AC, SMA Flat Leads
- Supplier Device Package: SMAflat
- Base Part Number: SMA6F
- detail: 24.4V Clamp 25.1A Ipp Tvs Diode Surface Mount SMAflat
