SN74AC11DR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74AC11DR
|
|
حجم فایل
|
75.95
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
21
|
مشخصات فنی
-
RoHS:
true
-
Series:
74AC
-
Category:
Logic ICs/Gates
-
Datasheet:

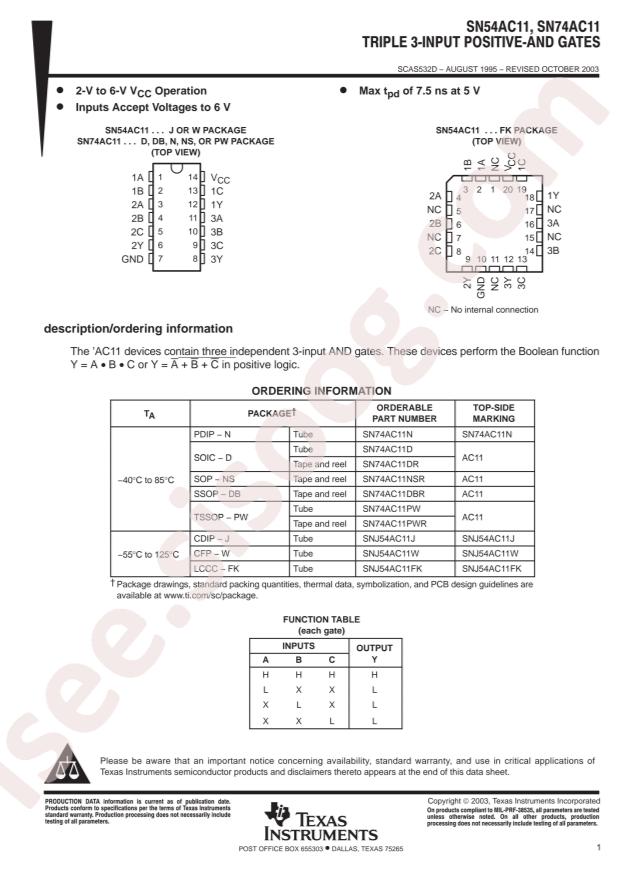

Texas Instruments SN74AC11DR
-
Sink Current:
24mA
-
Source Current:
24mA
-
Supply Voltage:
2V~6V
-
Logic Gate Type:
And
-
Number of Channels:
3
-
Low Level Range (VIL):
0.9V~1.65V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
2.1V~3.85V
-
Propagation Delay Time:
8ns@5V,50pF
-
Quiescent Current (Max):
2uA
-
Package:
SOP-14
-
Manufacturer:
Texas Instruments
-
Mounting Type:
Surface Mount
-
Logic Level - Low:
0.9V ~ 1.65V
-
Current - Quiescent (Max):
2µA
-
Voltage - Supply:
2V ~ 6V
-
Number of Circuits:
3
-
Packaging:
Cut Tape (CT)
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Logic Level - High:
2.1V ~ 3.85V
-
Part Status:
Active
-
Current - Output High, Low:
24mA, 24mA
-
Features:
-
-
Base Part Number:
SN74AC1
-
Supplier Device Package:
14-SOIC
-
Number of Inputs:
3
-
Logic Type:
AND Gate
-
Max Propagation Delay @ V, Max CL:
8ns @ 5V, 50pF
-
detail:
AND Gate IC 3 Channel 14-SOIC
