دیتاشیت L78M05CDT-1
مشخصات دیتاشیت
| نام دیتاشیت |

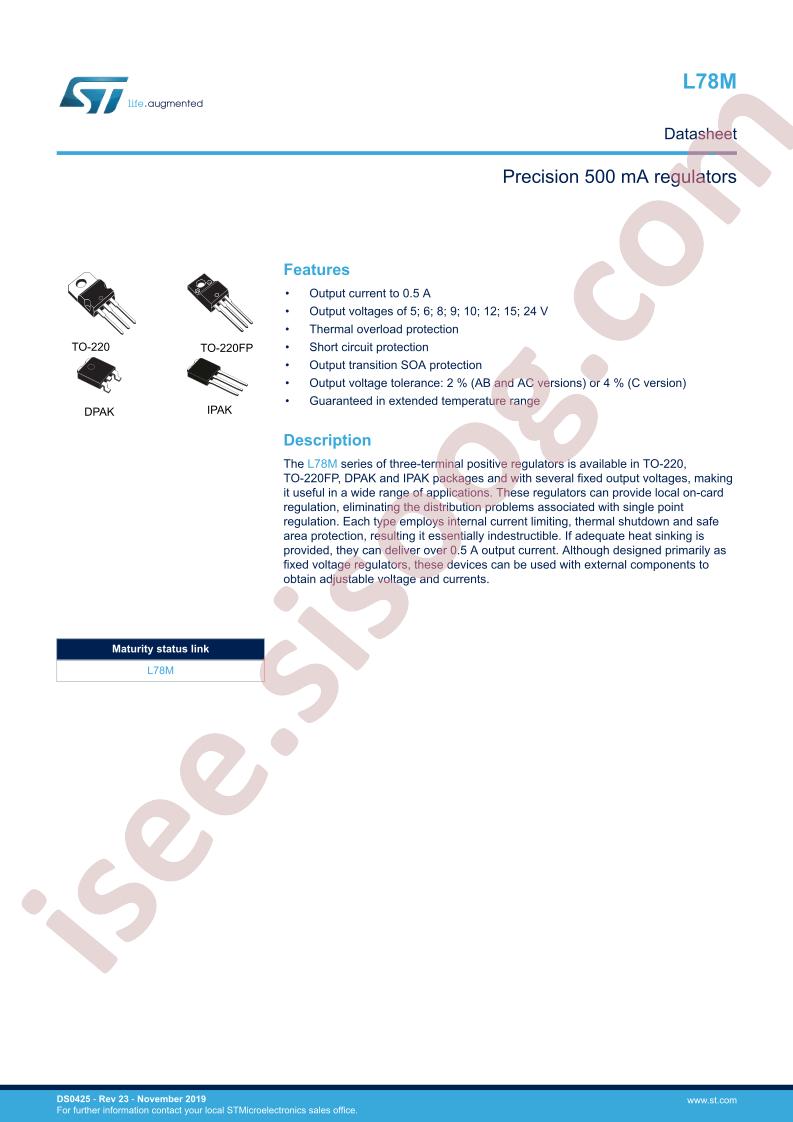

L78MxxC
|
| حجم فایل |
1112.709
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
45
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics L78M05CDT-1
-
Output Type:
Fixed
-
Output Current:
500mA
-
Output Voltage:
5V
-
Dropout Voltage:
-
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
35V
-
Power Supply Rejection Ratio (PSRR):
62dB@(120Hz)
-
Package:
TO-251
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
35V
-
Voltage - Output (Min/Fixed):
5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
-
-
Current - Output:
500mA
-
Current - Quiescent (Iq):
6mA
-
PSRR:
62dB (120Hz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature, Short Circuit
-
Operating Temperature:
0°C ~ 150°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-251-3 Short Leads, IPak, TO-251AA
-
Supplier Device Package:
IPAK (TO-251)
-
Base Part Number:
L78M05
-
detail:
Linear Voltage Regulator IC 1 Output 500mA IPAK (TO-251)
