دیتاشیت SN74HC266DR

SN54HC266, SN74HC266

مشخصات دیتاشیت

نام دیتاشیت SN54HC266, SN74HC266
حجم فایل 923.561 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت SN54HC266, SN74HC266

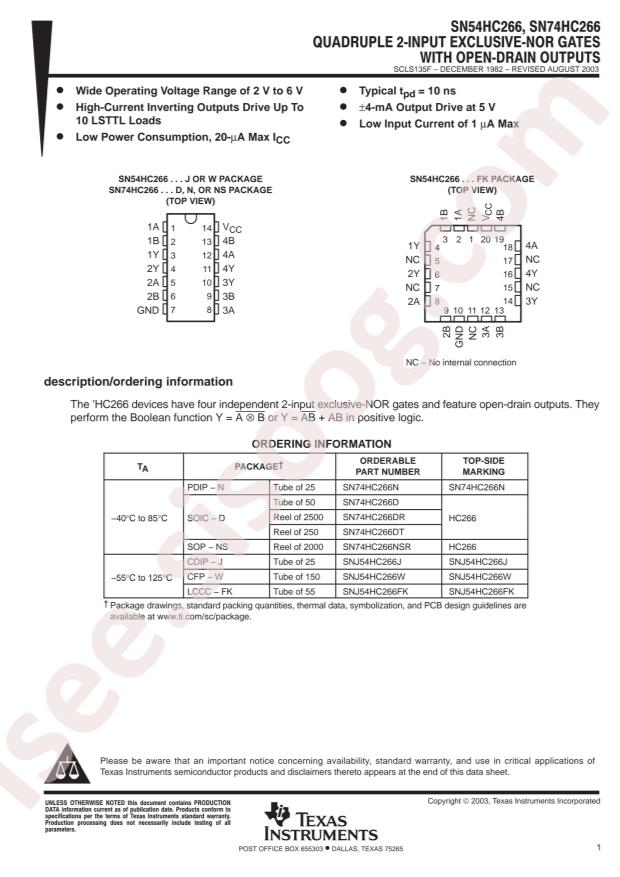

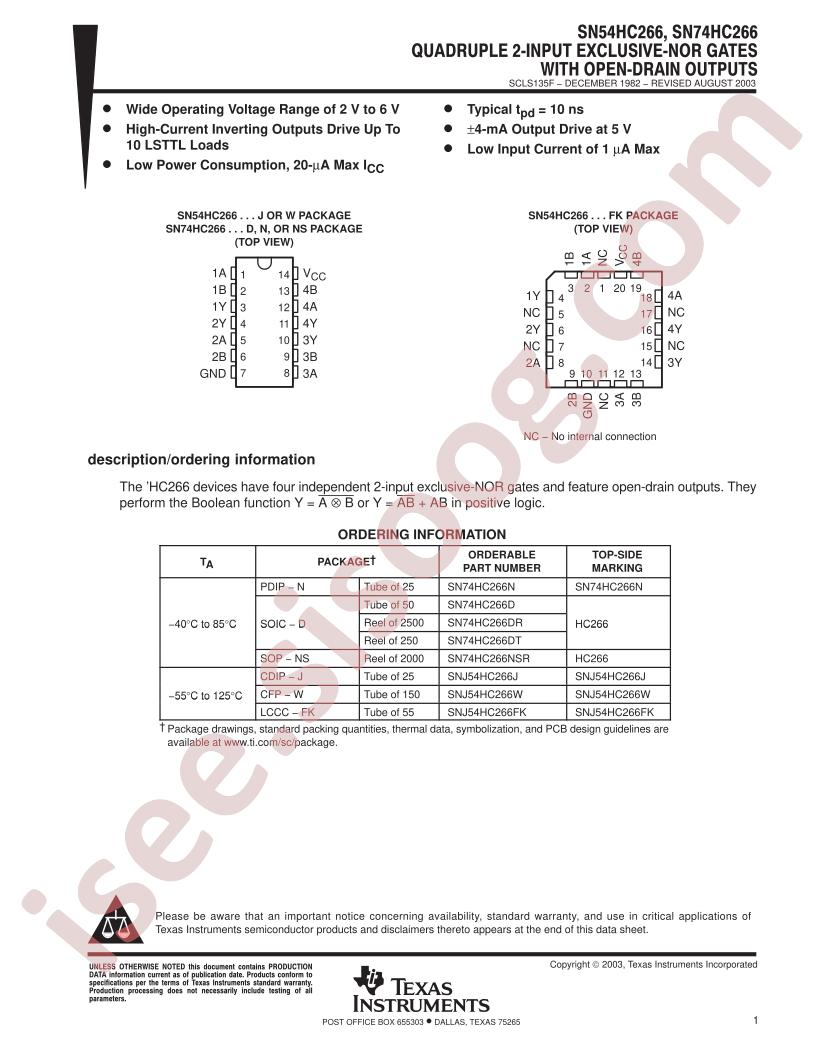

SN54HC266, SN74HC266 Datasheet

مشخصات

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74HC266DR
  • Sink Current: 5.2mA
  • Source Current: -
  • Supply Voltage: 2V~6V
  • Logic Gate Type: XNOR NOR Gate
  • Number of Channels: 4
  • Low Level Range (VIL): 0.5V~1.8V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 1.5V~4.2V
  • Propagation Delay Time: 23ns@6V,50pF
  • Quiescent Current (Max): 2uA
  • Package: SOIC-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.5V ~ 1.8V
  • Current - Quiescent (Max): 2µA
  • Voltage - Supply: 2V ~ 6V
  • Number of Circuits: 4
  • Packaging: Cut Tape (CT)
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Logic Level - High: 1.5V ~ 4.2V
  • Part Status: Active
  • Current - Output High, Low: -, 5.2mA
  • Features: Open Drain
  • Base Part Number: SN74HC2
  • Supplier Device Package: 14-SOIC
  • Number of Inputs: 2
  • Logic Type: XNOR (Exclusive NOR)
  • Max Propagation Delay @ V, Max CL: 23ns @ 6V, 50pF
  • detail: XNOR (Exclusive NOR) IC 4 Channel Open Drain 14-SOIC
