L4949EPTR-E دیتاشیت

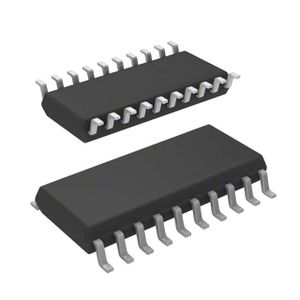

L4949EPTR-E

مشخصات دیتاشیت

نام دیتاشیت L4949EPTR-E
حجم فایل 57.881 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

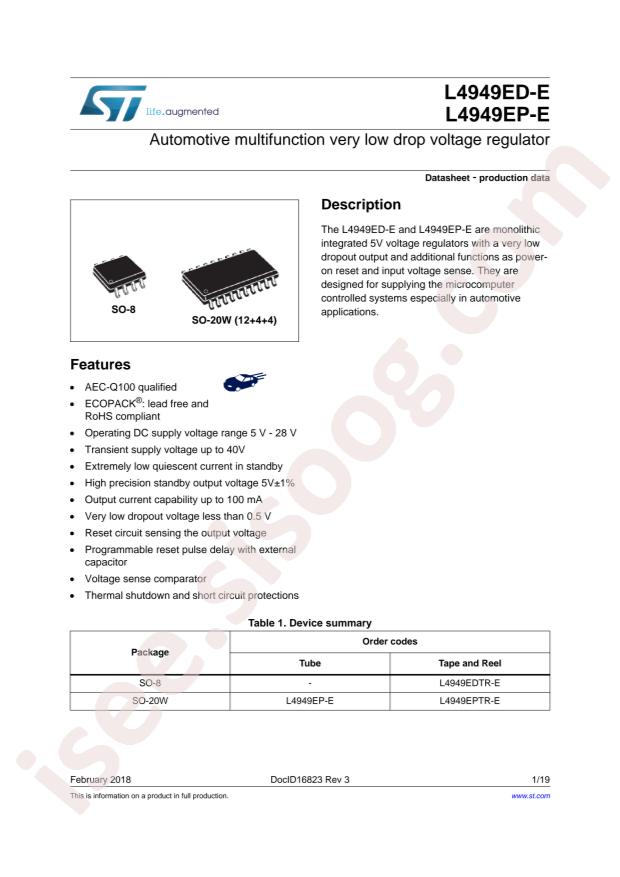

مشاهده دیتاشیت L4949EPTR-E

دانلود دیتاشیت

سایر مستندات

L4949Ex-E 19 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: STMicroelectronics L4949EPTR-E
  • Output Type: Fixed
  • Output Current: 100mA
  • Output Voltage: 5V
  • Dropout Voltage: 500mV@(100mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 28V
  • Power Supply Rejection Ratio (PSRR): -
  • Package: SOP-20-300mil
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q100
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 28V
  • Voltage - Output (Min/Fixed): 5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.5V @ 100mA
  • Current - Output: 100mA
  • Current - Quiescent (Iq): 300µA
  • Current - Supply (Max): 5mA
  • PSRR: -
  • Control Features: Reset
  • Protection Features: Over Temperature, Short Circuit
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 20-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 20-SO
  • Base Part Number: L4949
  • detail: Linear Voltage Regulator IC 1 Output 100mA 20-SO
