STT818B دیتاشیت

STT818B

مشخصات دیتاشیت

نام دیتاشیت STT818B
حجم فایل 47.311 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

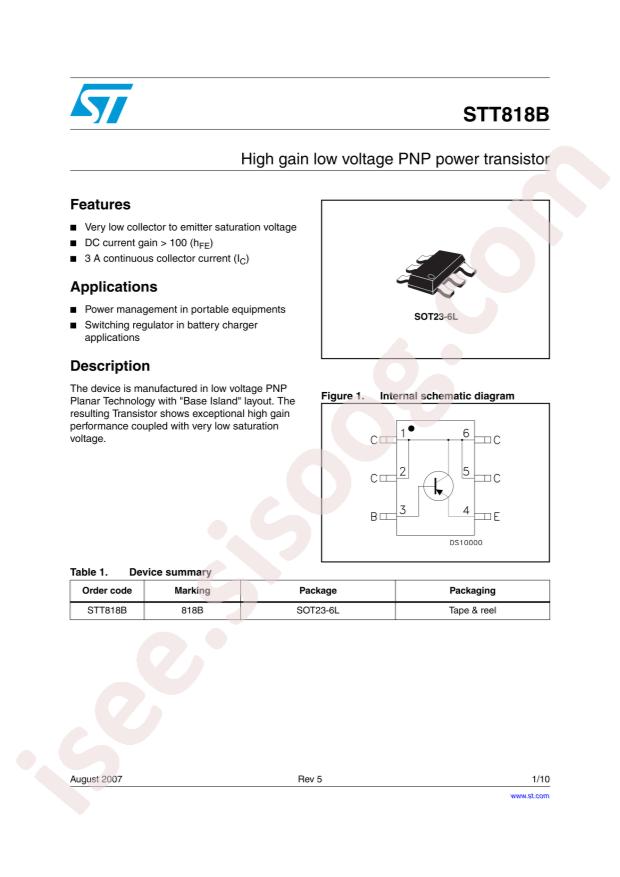

مشاهده دیتاشیت STT818B

دانلود دیتاشیت

سایر مستندات

STT818B 10 pages

STT818B 5 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: STMicroelectronics STT818B
  • Transistor Type: PNP
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 3A
  • Power Dissipation (Pd): 1.2W
  • Transition Frequency (fT): -
  • DC Current Gain (hFE@Ic,Vce): 100@500mA,1V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 30V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 210mV@2A,20mA

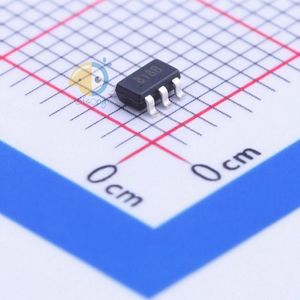

  • Package: SOT-23-6
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Current - Collector (Ic) (Max): 3A
  • Voltage - Collector Emitter Breakdown (Max): 30V
  • Vce Saturation (Max) @ Ib, Ic: 500mV @ 20mA, 2A
  • Current - Collector Cutoff (Max): 100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 500mA, 1V
  • Power - Max: 1.2W
  • Frequency - Transition: -
  • Mounting Type: Surface Mount
  • Package / Case: SOT-23-6
  • Supplier Device Package: SOT-23-6L
  • Base Part Number: STT818
  • detail: Bipolar (BJT) Transistor PNP 30V 3A 1.2W Surface Mount SOT-23-6L
