TLV76033DBZT دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TLV76033DBZT |
|---|---|
| حجم فایل | 63.927 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت TLV76033DBZT |
دانلود دیتاشیت |
|---|
سایر مستندات

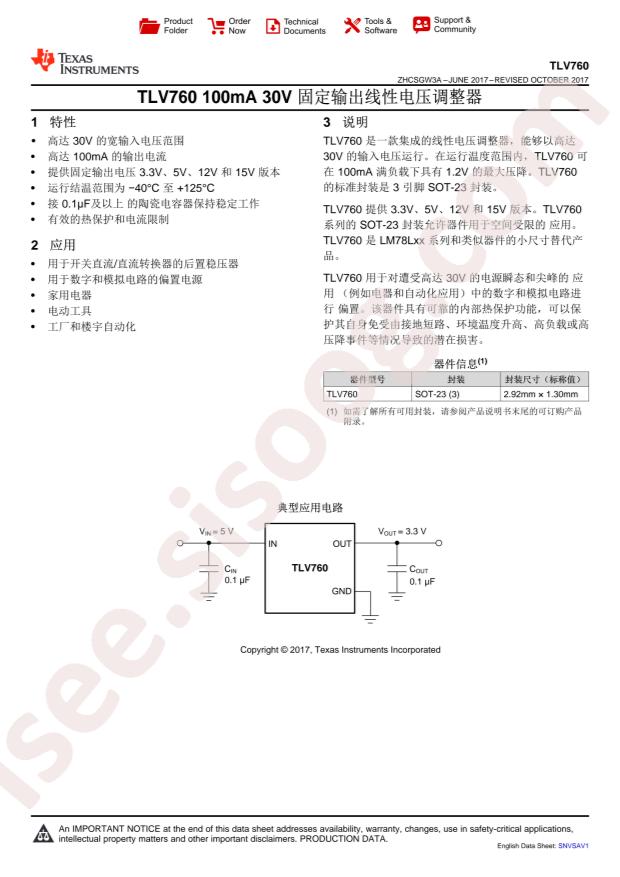

TLV760 Datasheet 25 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TLV76033DBZT
- Output Type: Fixed
- Output Current: 100mA
- Output Voltage: 3.3V
- Dropout Voltage: 1.1V@(100mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 30V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 5mA
- Power Supply Rejection Ratio (PSRR): -

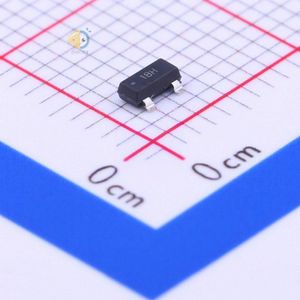

- Package: SOT-23
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 30V
- Current - Quiescent (Iq): 5mA
- Output Configuration: Positive
- Base Part Number: TLV760
- Voltage - Output (Min/Fixed): 3.3V
- Protection Features: Over Temperature
- Series: -
- Packaging: Cut Tape (CT)
- PSRR: -
- Supplier Device Package: SOT-23-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Number of Regulators: 1
- Part Status: Active
- Control Features: -
- Voltage - Output (Max): -
- Mounting Type: Surface Mount
- Voltage Dropout (Max): 1.1V @ 100mA
- Current - Output: 100mA
- detail: Linear Voltage Regulator IC 1 Output 100mA SOT-23-3
