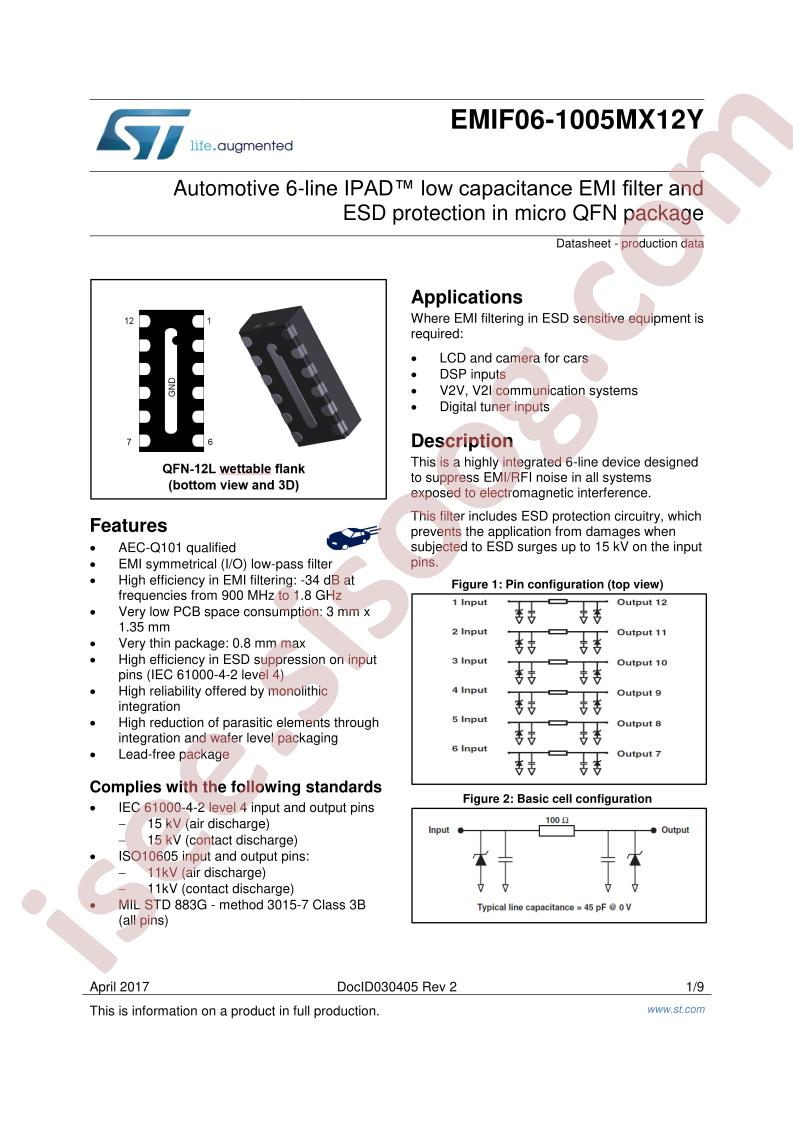

EMIF06-1005MX12Y دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
EMIF06-1005MX12Y
|
|
حجم فایل
|
705.033
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
EMIF
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Low Pass
-
Filter Order:
2nd
-
Technology:
RC (Pi)
-
Number of Channels:
1
-
Center / Cutoff Frequency:
-
-
Attenuation Value:
-34dB @ 900MHz ~ 1.8GHz
-
Resistance - Channel (Ohms):
100
-
Values:
R = 100Ohm, C = 45pF
-
ESD Protection:
Yes
-
Operating Temperature:
-55°C ~ 150°C
-
Applications:
Data Lines for Mobile Devices
-
Voltage - Rated:
-
-
Mounting Type:
Surface Mount, Wettable Flank
-
Package / Case:
12-WFDFN Exposed Pad
-
Size / Dimension:
0.118" L x 0.053" W (3.00mm x 1.35mm)
-
Height:
0.032" (0.80mm)
-
Base Part Number:
EMIF06
-
detail:
RC (Pi) EMI Filter 2nd Order Low Pass 1 Channel R = 100Ohm, C = 45pF 12-WFDFN Exposed Pad
