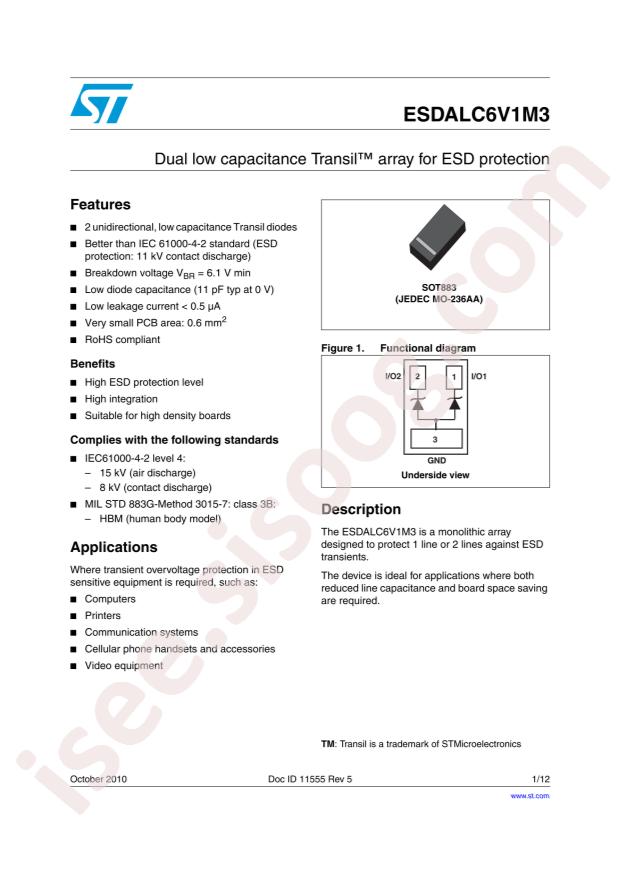

ESDALC6V1M3 دیتاشیت

ESDALC6V1M3

مشخصات دیتاشیت

نام دیتاشیت ESDALC6V1M3
حجم فایل 61.712 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت ESDALC6V1M3

دانلود دیتاشیت

سایر مستندات

ESDALC6V1M3 12 pages

ESDALC6V1M3 8 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics ESDALC6V1M3
  • Clamping Voltage@Ipp: -
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Breakdown Voltage (VBR): 6.1V
  • Peak Pulse Power(Ppp)@8/20us: 30W
  • Junction Capacitance(Cj)@1MHz: 11pF@1MHz
  • Peak Pulse Current(Ipp)@8/20us: -
  • Reverse Stand-Off Voltage (Vrwm): 5V
  • Package: SOT-883
  • Manufacturer: STMicroelectronics
  • Series: ESDA, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 2
  • Voltage - Reverse Standoff (Typ): 5V
  • Voltage - Breakdown (Min): 6.1V
  • Voltage - Clamping (Max) @ Ipp: -
  • Current - Peak Pulse (10/1000µs): -
  • Power - Peak Pulse: 30W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 11pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: SC-101, SOT-883
  • Supplier Device Package: SOT-883
  • Base Part Number: ESDALC6V1
  • detail: Clamp Ipp Tvs Diode Surface Mount SOT-883
