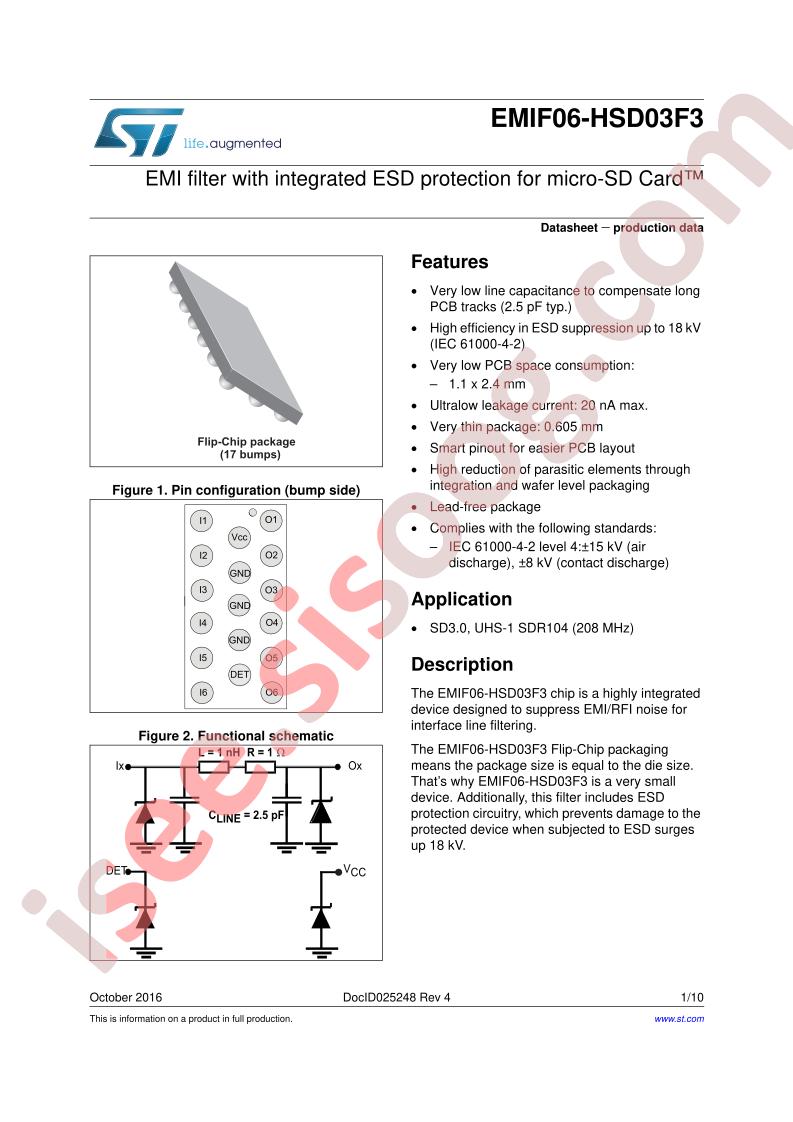

EMIF06-HSD03F3 Datasheet
Datasheet specifications
| Datasheet's name | EMIF06-HSD03F3 |
|---|---|
| File size | 573.518 KB |
| File type | |
| Number of pages | 10 |
Download Datasheet EMIF06-HSD03F3 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: STMicroelectronics
- Series: EMIF
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Low Pass
- Filter Order: 3rd
- Technology: RLC
- Number of Channels: 6
- Center / Cutoff Frequency: -
- Attenuation Value: -
- Resistance - Channel (Ohms): 1
- Values: L = 1nH, C = 2.5pF
- ESD Protection: Yes
- Operating Temperature: -30°C ~ 85°C
- Applications: Data Lines for Mobile Devices
- Voltage - Rated: -
- Mounting Type: Surface Mount
- Package / Case: 17-WFBGA, FCBGA
- Size / Dimension: 0.094" L x 0.043" W (2.40mm x 1.10mm)
- Height: 0.026" (0.65mm)
- Base Part Number: EMIF06
- detail: RLC EMI Filter 3rd Order Low Pass 6 Channel L = 1nH, C = 2.5pF 17-WFBGA, FCBGA
