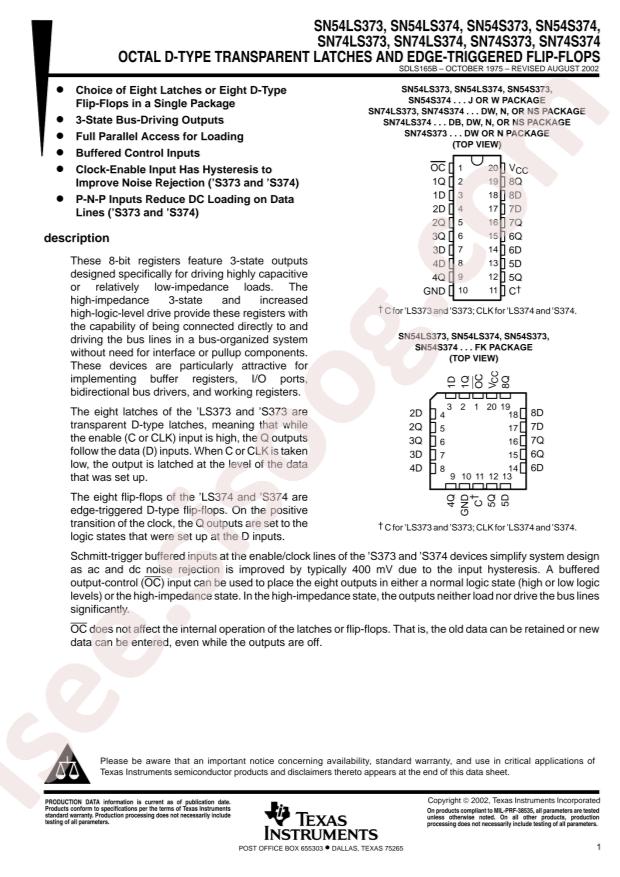

- دیتاشیت SN74LS374DWR
SN74LS374DWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LS374DWR |
|---|---|
| حجم فایل | 113.054 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 29 |
دانلود دیتاشیت SN74LS374DWR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54LS/S373-74, SN74LS/S373-74 32 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74LS
- Category: Logic ICs/Flip Flops
- Function: -
- Datasheet: Texas Instruments SN74LS374DWR
- Output Type: Tri-State;Non-Inverted
- Sink Current: 24mA
- Trigger Type: 上升沿
- Source Current: 2.6mA
- Supply Voltage: 4.75V~5.25V
- Clock Frequency: 50MHz
- Input Capacitance: -
- Quiescent Current (Iq): 40mA
- Maximum Propagation Delay: 28ns@5V,45pF
- Package: SOP-20-300mil
- Manufacturer: Texas Instruments
- Number of Elements: 1
- Voltage - Supply: 4.75V ~ 5.25V
- Operating Temperature: 0°C ~ 70°C (TA)
- Package / Case: 20-SOIC (0.295", 7.50mm Width)
- Packaging: Cut Tape (CT)
- Number of Bits per Element: 8
- Current - Output High, Low: 2.6mA, 24mA
- Part Status: Active
- Base Part Number: SN74LS37
- Supplier Device Package: 20-SOIC
- Mounting Type: Surface Mount
- Current - Quiescent (Iq): 40mA
- Max Propagation Delay @ V, Max CL: 28ns @ 5V, 45pF
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
