CSD87502Q2T دیتاشیت

مشخصات دیتاشیت

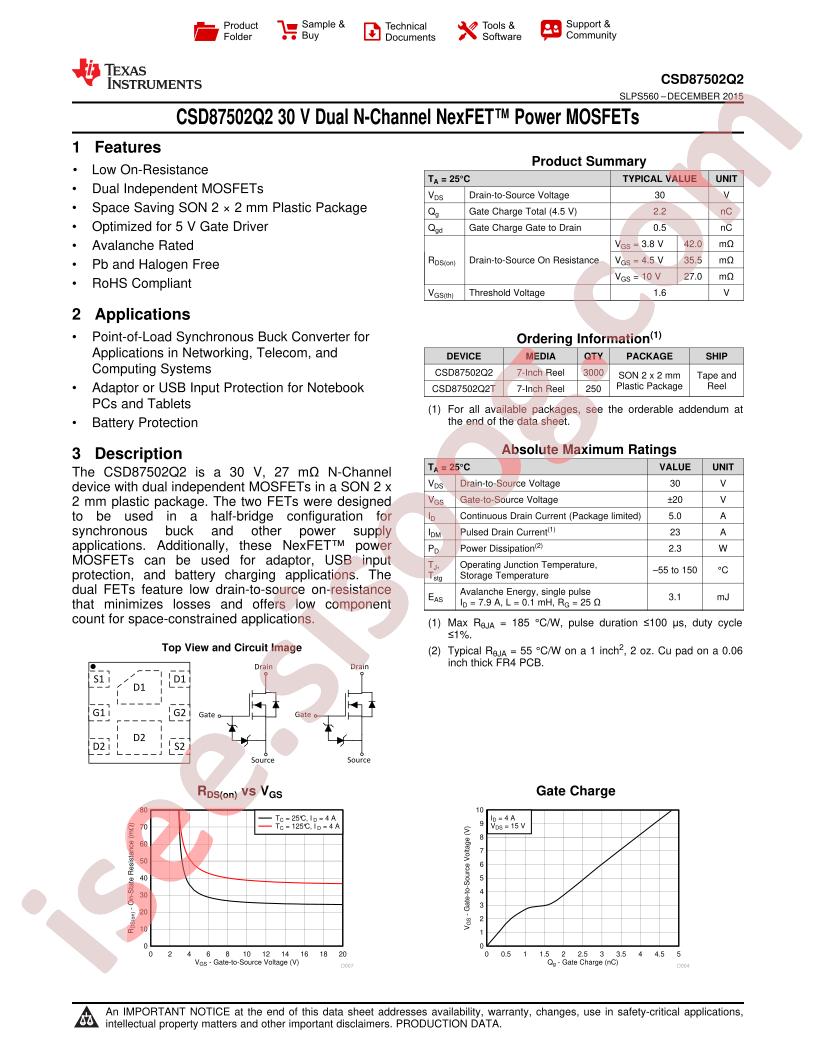

مشاهده دیتاشیت CSD87502Q2T	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/MOSFETs
Package: WSON-6(2x2)
Manufacturer: Texas Instruments
Drain to Source Voltage (Vdss): 30V
Power - Max: 2.3W
Rds On (Max) @ Id, Vgs: 32.4mOhm @ 4A, 10V
FET Type: 2 N-Channel (Dual)
Part Status: Active
Current - Continuous Drain (Id) @ 25°C: 5A
FET Feature: Logic Level Gate, 5V Drive
Input Capacitance (Ciss) (Max) @ Vds: 353pF @ 15V
Operating Temperature: -55°C ~ 150°C (TJ)
Packaging: Cut Tape (CT)
Package / Case: 6-WDFN Exposed Pad
Series: NexFET™
Vgs(th) (Max) @ Id: 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 6nC @ 10V
Supplier Device Package: 6-WSON (2x2)
Mounting Type: Surface Mount
Base Part Number: CSD8750
detail: Mosfet Array 2 N-Channel (Dual) 30V 5A 2.3W Surface Mount 6-WSON (2x2)
