دیتاشیت SN74HCT32N
مشخصات دیتاشیت
| نام دیتاشیت | SN54HCT32, SN74HCT32 |
|---|---|
| حجم فایل | 1021.366 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت SN54HCT32, SN74HCT32 |

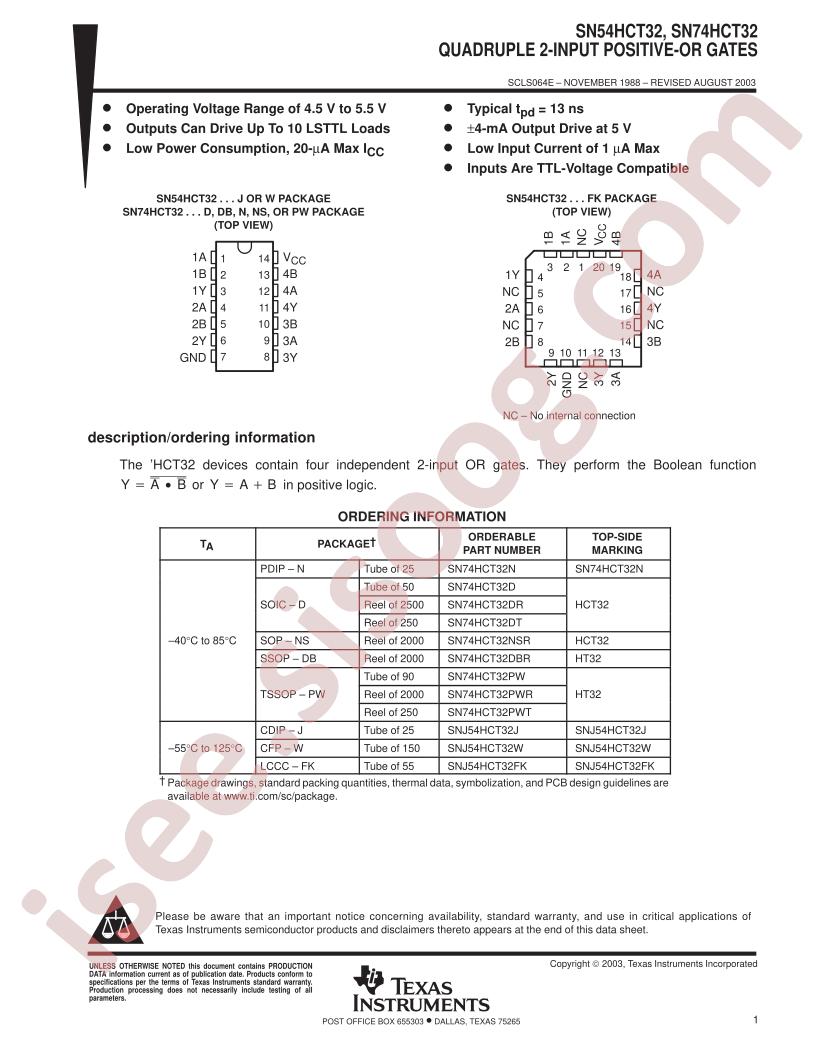

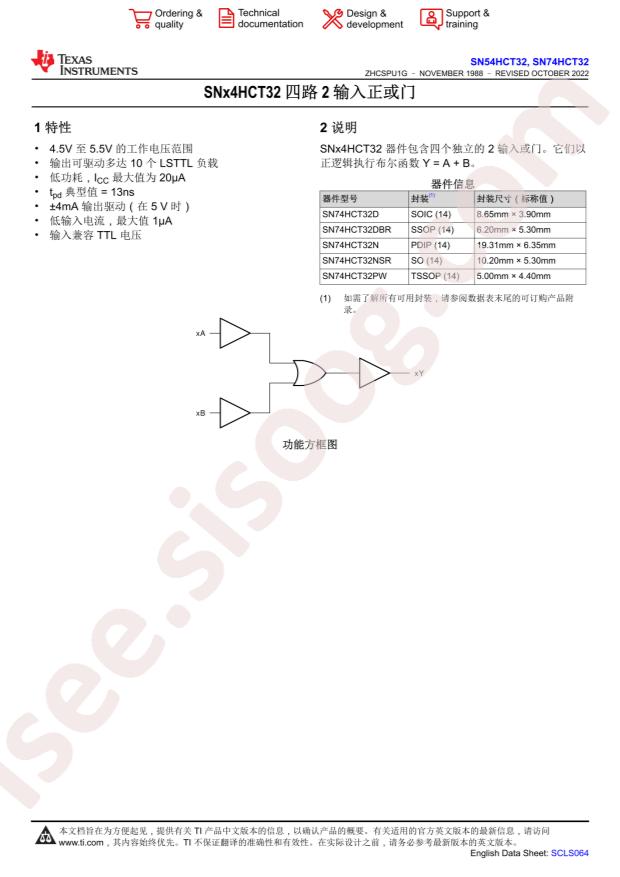

SN54HCT32, SN74HCT32 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74HCT
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74HCT32N
- Sink Current: 4mA
- Source Current: 4mA
- Supply Voltage: 4.5V~5.5V
- Logic Gate Type: ORGate
- Number of Channels: 4
- Low Level Range (VIL): 0.8V
- Operating Temperature: -40°C~+85°C
- High Level Range (VIH): 2V
- Propagation Delay Time: 22ns@5.5V,50pF
- Quiescent Current (Max): 2uA
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Logic Level - Low: 0.8V
- Current - Quiescent (Max): 2µA
- Voltage - Supply: 4.5V ~ 5.5V
- Number of Circuits: 4
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Level - High: 2V
- Part Status: Active
- Current - Output High, Low: 4mA, 4mA
- Features: -
- Base Part Number: SN74HCT
- Supplier Device Package: 14-PDIP
- Number of Inputs: 2
- Logic Type: OR Gate
- Max Propagation Delay @ V, Max CL: 22ns @ 5.5V, 50pF
- detail: OR Gate IC 4 Channel 14-PDIP
