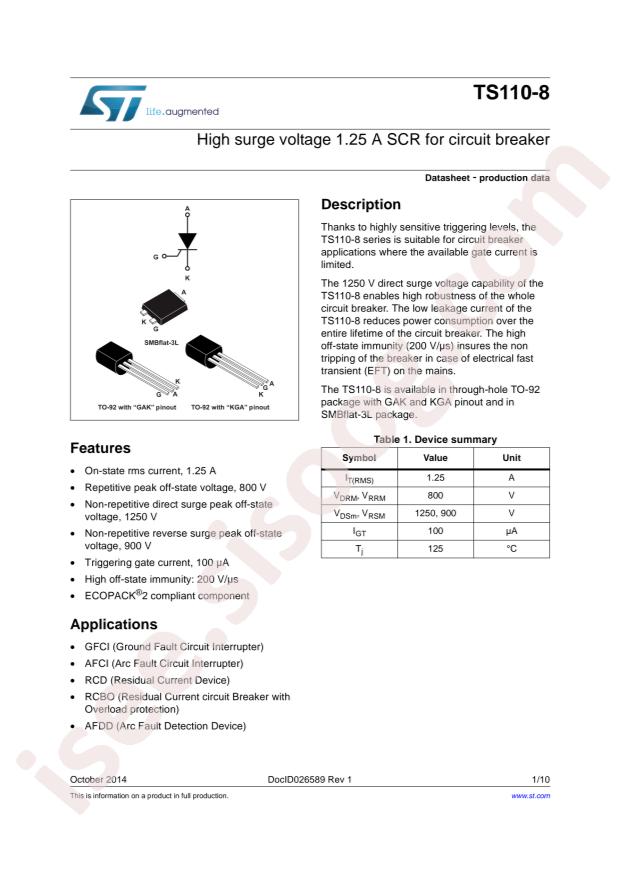

دیتاشیت TS110-8UF
مشخصات دیتاشیت
| نام دیتاشیت |
TS110-8
|
| حجم فایل |
228.526
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/TRIACs
-
SCR Type:
门极灵敏型
-
Datasheet:
STMicroelectronics TS110-8UF
-
Holding Current (Ih):
12mA
-
Operating Temperature:
-40°C~+125°C
-
Gate Trigger Current(Igt):
100uA
-
Gate Trigger Voltage (Vgt):
800mV
-
RMS On-State Current(It (rms)):
1.25A
-
Peak Forward On?State Voltage (Vtm):
1.6V
-
Peak Repetitive Off?State Voltage (Vdrm):
800V
-
Package:
SMB-3L-FL
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Off State:
800V
-
Voltage - Gate Trigger (Vgt) (Max):
800mV
-
Current - Gate Trigger (Igt) (Max):
100µA
-
Voltage - On State (Vtm) (Max):
1.6V
-
Current - On State (It (AV)) (Max):
800mA
-
Current - On State (It (RMS)) (Max):
1.25A
-
Current - Hold (Ih) (Max):
12mA
-
Current - Non Rep. Surge 50, 60Hz (Itsm):
20A, 21A
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-221AA, SMB Flat Leads
-
Supplier Device Package:
SMBflat-3L
-
Base Part Number:
TS110
-
detail:
SCR 800V 1.25A Sensitive Gate Surface Mount SMBflat-3L
