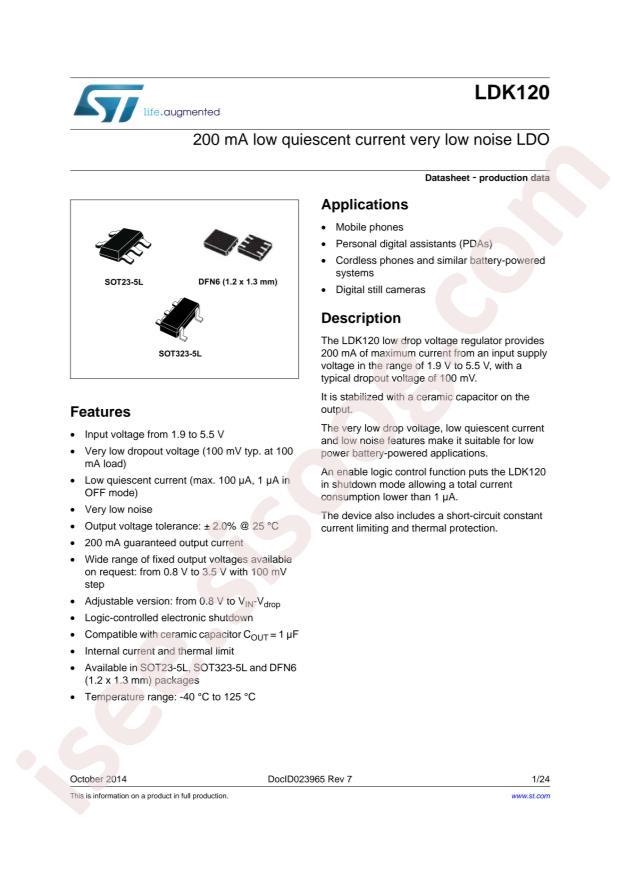

LDK120C15R دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LDK120C15R
|
|
حجم فایل
|
62.883
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics LDK120C15R
-
Output Type:
Fixed
-
Output Current:
200mA
-
Output Voltage:
1.5V
-
Dropout Voltage:
300mV@(200mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
60uA
-
Power Supply Rejection Ratio (PSRR):
55dB@(120Hz~10kHz)
-
Package:
SOT-323-5
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
1.5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.3V @ 200mA
-
Current - Output:
200mA
-
Current - Quiescent (Iq):
60µA
-
Current - Supply (Max):
100µA
-
PSRR:
55dB (120Hz ~ 10kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
5-TSSOP, SC-70-5, SOT-353
-
Supplier Device Package:
SOT-323-5
-
Base Part Number:
LDK120
-
detail:
Linear Voltage Regulator IC 1 Output 200mA SOT-323-5
