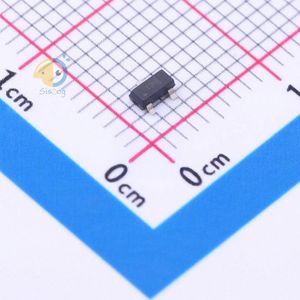

دیتاشیت TLVH431QDBZR
مشخصات دیتاشیت
| نام دیتاشیت | TLVH431/A/B, TLVH432/A/B |
|---|---|
| حجم فایل | 2183.335 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 57 |

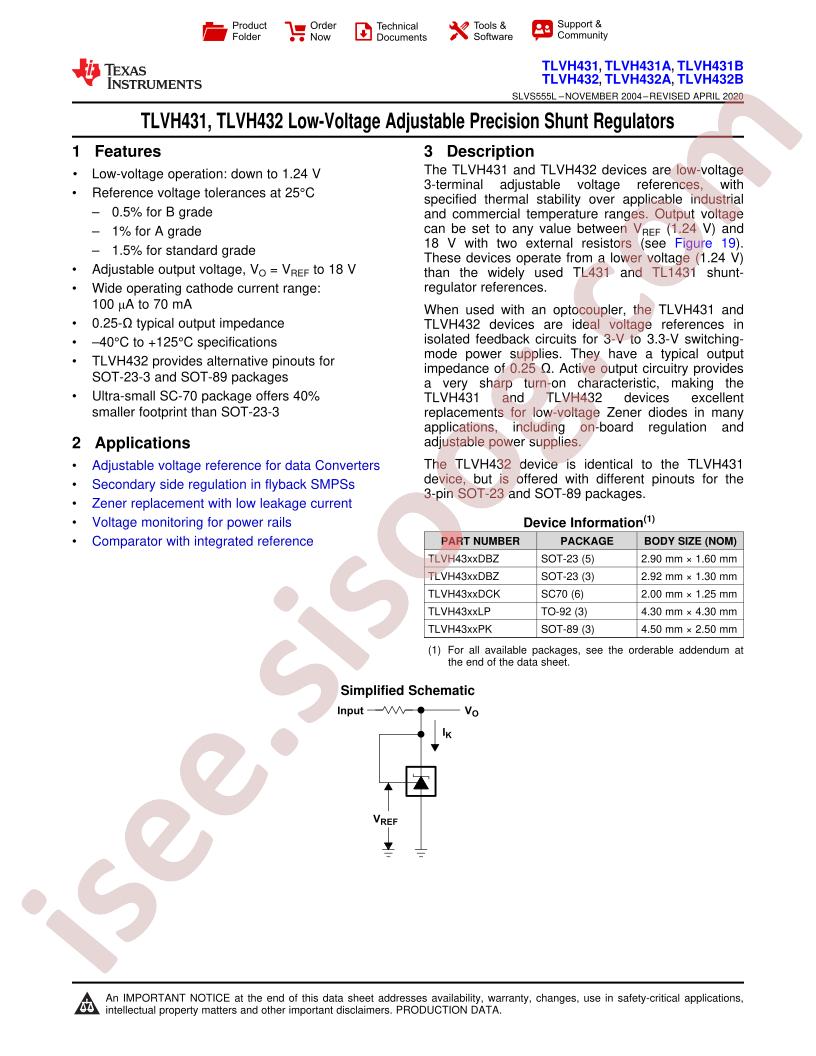

دانلود دیتاشیت TLVH431/A/B, TLVH432/A/B |
TLVH431/A/B, TLVH432/A/B Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: Texas Instruments TLVH431QDBZR
- Tolerance: ±1.5%
- Output Type: Adjustable
- Input Voltage: -
- Output Current: 70mA
- Output Voltage: 1.24V~18V
- Reference Type: parallel connection
- Supply Current: -
- Noise - 10Hz to 10kHz: -
- Operating Temperature: -40°C~+125°C@(Ta)
- Noise - 1/10Hz to 10Hz: -
- Temperature Coefficient: -
- Package: SOT-23-3
- Manufacturer: Texas Instruments
- Noise - 0.1Hz to 10Hz: -
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3
- Part Status: Active
- Base Part Number: TLVH431
- Voltage - Output (Min/Fixed): 1.24V
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Current - Cathode: 100µA
- Packaging: Cut Tape (CT)
- Current - Supply: -
- Series: -
- Voltage - Output (Max): 18V
- Current - Output: 70mA
- Voltage - Input: -
- detail: Shunt Voltage Reference IC 18V ±1.5% SOT-23-3
