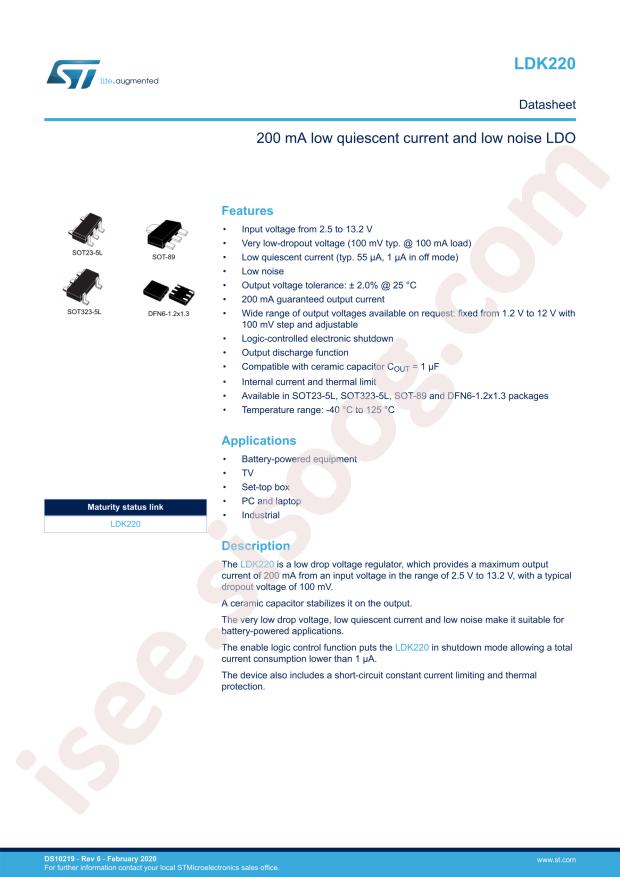

LDK220U33R دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LDK220U33R |
|---|---|
| حجم فایل | 55.375 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت LDK220U33R |
دانلود دیتاشیت |
|---|
سایر مستندات
Power Management Handheld,Portable Guide 12 pages
LDK220 Datasheet 27 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: STMicroelectronics LDK220U33R
- Output Current: 200mA
- Output Voltage: 3.3V
- Dropout Voltage: 0.35V@(200mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 13.2V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 90uA
- Package: SOT-89
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 13.2V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.35V @ 200mA
- Current - Output: 200mA
- Current - Quiescent (Iq): 90µA
- Current - Supply (Max): 100µA
- PSRR: 55dB ~ 50dB (120Hz ~ 10kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: TO-243AA
- Supplier Device Package: SOT-89
- Base Part Number: LDK220
- detail: Linear Voltage Regulator IC 1 Output 200mA SOT-89
