SN74LVC2G53DCTR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت SN74LVC2G53DCTR	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments SN74LVC2G53DCTR
Switch Circuit: -

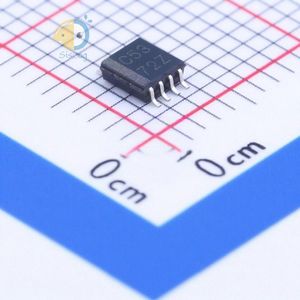

Package: MSOP-8-2.8mm
Manufacturer: Texas Instruments
Current - Leakage (IS(off)) (Max): 100nA
Voltage - Supply, Single (V+): 1.65V ~ 5.5V
Voltage - Supply, Dual (V±): -
Number of Circuits: 1
Channel-to-Channel Matching (ΔRon): 2Ohm (Max)
Package / Case: 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
Part Status: Active
Supplier Device Package: SM8 (SSOP)
Switch Time (Ton, Toff) (Max): 4.5ns, 8ns
Packaging: Cut Tape (CT)
-3db Bandwidth: 300MHz
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Crosstalk: -58dB @ 1MHz
Base Part Number: SN74LVC2G
Series: -
Channel Capacitance (CS(off), CD(off)): 10pF
On-State Resistance (Max): 13Ohm
Multiplexer/Demultiplexer Circuit: 2:1
Charge Injection: -
detail: 1 Circuit IC Switch 2:1 13Ohm SM8 (SSOP)
