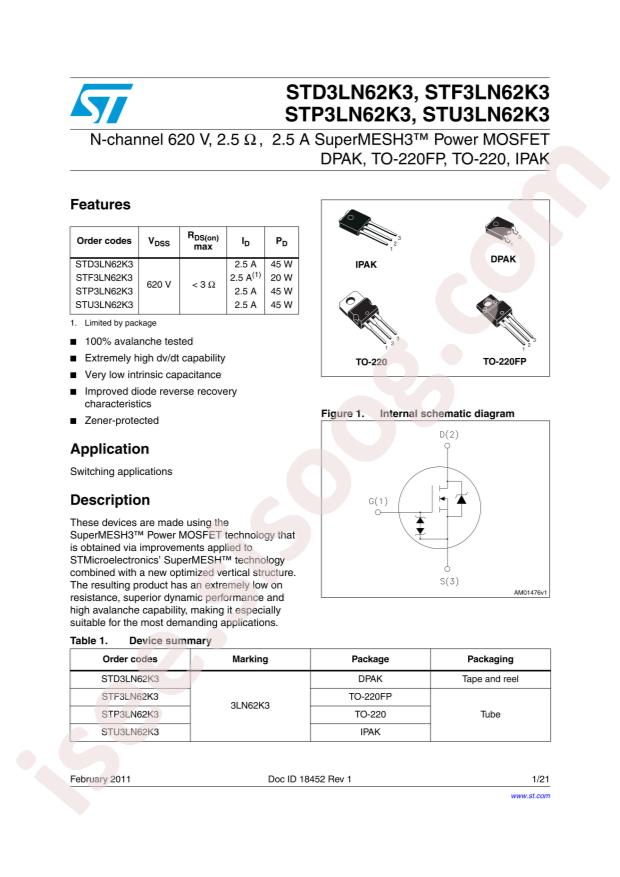

STU3LN62K3 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STU3LN62K3 |
|---|---|
| حجم فایل | 70.805 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت STU3LN62K3 |
دانلود دیتاشیت |
|---|
سایر مستندات
STD/F/P/U3LN62K3 21 pages
مشخصات فنی
- RoHS: true
- Type: -
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: STMicroelectronics STU3LN62K3
- Power Dissipation (Pd): -
- Total Gate Charge (Qg@Vgs): -
- Drain Source Voltage (Vdss): -
- Input Capacitance (Ciss@Vds): -
- Continuous Drain Current (Id): -
- Gate Threshold Voltage (Vgs(th)@Id): -
- Reverse Transfer Capacitance (Crss@Vds): -
- Drain Source On Resistance (RDS(on)@Vgs,Id): -
- Package: TO-251
- Manufacturer: STMicroelectronics
- Series: SuperMESH3™
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 620V
- Current - Continuous Drain (Id) @ 25°C: 2.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3Ohm @ 1.25A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 50µA
- Gate Charge (Qg) (Max) @ Vgs: 17nC @ 10V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 386pF @ 50V
- FET Feature: -
- Power Dissipation (Max): 45W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: I-PAK
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
- Base Part Number: STU3L
- detail: N-Channel 620V 2.5A (Tc) 45W (Tc) Through Hole I-PAK
