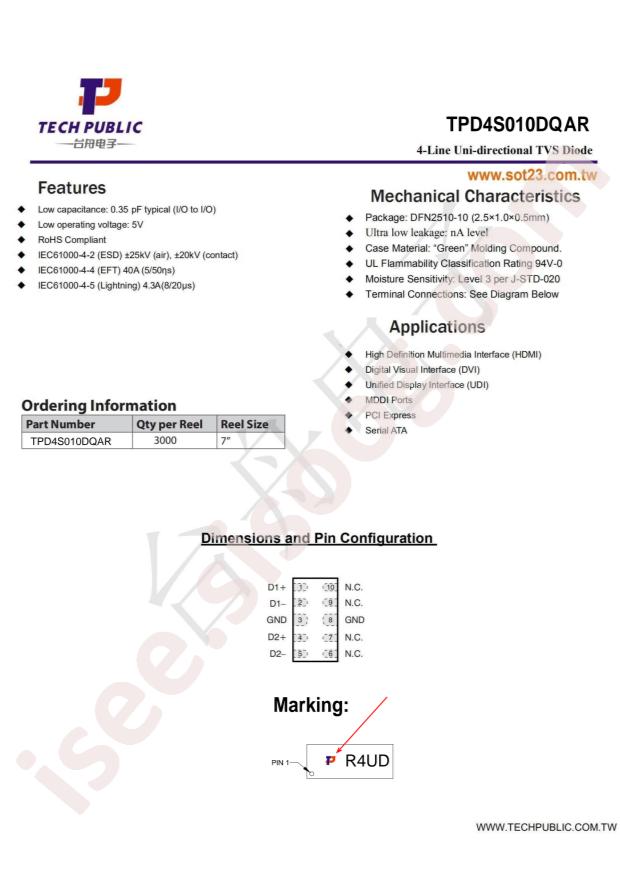

TPD4S010DQAR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPD4S010DQAR
|
|
حجم فایل
|
50.08
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
Texas Instruments TPD4S010DQAR
-
Clamping Voltage@Ipp:
-
-
Operating Temperature:
-40°C~+85°C@(Ta)
-
Breakdown Voltage (VBR):
9V
-
Peak Pulse Power(Ppp)@8/20us:
25W
-
Junction Capacitance(Cj)@1MHz:
-
-
Peak Pulse Current(Ipp)@8/20us:
-
-
Reverse Stand-Off Voltage (Vrwm):
5.5V
-
Package:
USON-10(2.5x1)
-
Manufacturer:
Texas Instruments
-
Voltage - Reverse Standoff (Typ):
5.5V (Max)
-
Power - Peak Pulse:
25W
-
Applications:
Ethernet, HDMI
-
Package / Case:
10-UFDFN
-
Part Status:
Active
-
Current - Peak Pulse (10/1000µs):
-
-
Voltage - Breakdown (Min):
9V
-
Mounting Type:
Surface Mount
-
Packaging:
Cut Tape (CT)
-
Type:
Steering (Rail to Rail)
-
Power Line Protection:
Yes
-
Capacitance @ Frequency:
-
-
Series:
-
-
Supplier Device Package:
10-USON (2.5x1)
-
Base Part Number:
TPD4S0
-
Voltage - Clamping (Max) @ Ipp:
-
-
Unidirectional Channels:
4
-
detail:
Clamp Ipp Tvs Diode Surface Mount 10-USON (2.5x1)
