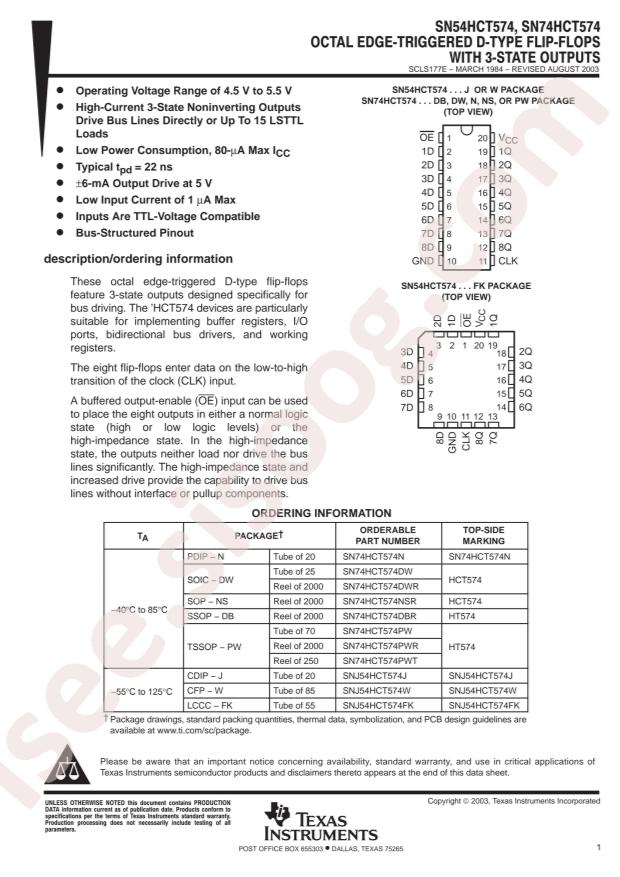

SN74HCT574DWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74HCT574DWR |
|---|---|
| حجم فایل | 99.27 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت SN74HCT574DWR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54HCT574, SN74HCT574 20 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74HCT
- Category: Logic ICs/Flip Flops
- Function: -
- Datasheet: Texas Instruments SN74HCT574DWR
- Output Type: Tri-State;Non-Inverted
- Sink Current: 6mA
- Trigger Type: 上升沿
- Source Current: 6mA
- Supply Voltage: 4.5V~5.5V
- Clock Frequency: 40MHz
- Input Capacitance: 3pF
- Quiescent Current (Iq): 8uA
- Maximum Propagation Delay: 47ns@5.5V,150pF
- Package: SOP-20-300mil
- Manufacturer: Texas Instruments
- Number of Elements: 1
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C (TA)
- Package / Case: 20-SOIC (0.295", 7.50mm Width)
- Packaging: Cut Tape (CT)
- Supplier Device Package: 20-SOIC
- Number of Bits per Element: 8
- Current - Output High, Low: 6mA, 6mA
- Part Status: Active
- Base Part Number: SN74HCT
- Mounting Type: Surface Mount
- Current - Quiescent (Iq): 8µA
- Max Propagation Delay @ V, Max CL: 47ns @ 5.5V, 150pF
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
