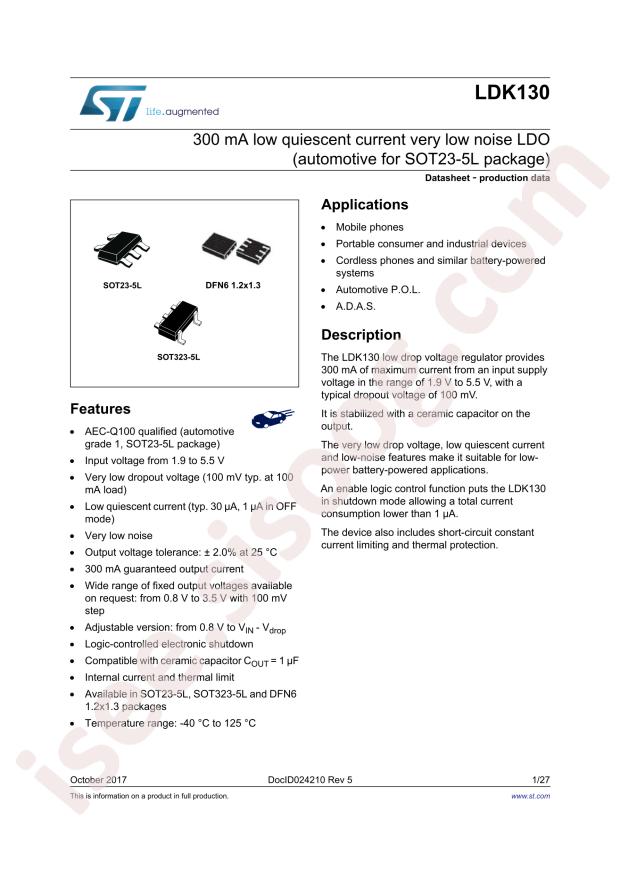

LDK130PU-R دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LDK130PU-R
|
|
حجم فایل
|
69.228
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
27
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics LDK130PU-R
-
Output Type:
Adjustable
-
Output Current:
300mA
-
Output Voltage:
0.8V~5.1V
-
Dropout Voltage:
400mV@(300mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
60uA
-
Power Supply Rejection Ratio (PSRR):
55dB@(120Hz~10kHz)
-
Package:
DFN-6(1.2x1.3)
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
5.1V
-
Voltage Dropout (Max):
0.4V @ 300mA
-
Current - Output:
300mA
-
Current - Quiescent (Iq):
60µA
-
Current - Supply (Max):
120µA
-
PSRR:
55dB (120Hz ~ 10kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
6-XFDFN
-
Supplier Device Package:
6-DFN (1.2x1.3)
-
Base Part Number:
LDK130
-
detail:
Linear Voltage Regulator IC 1 Output 300mA 6-DFN (1.2x1.3)
