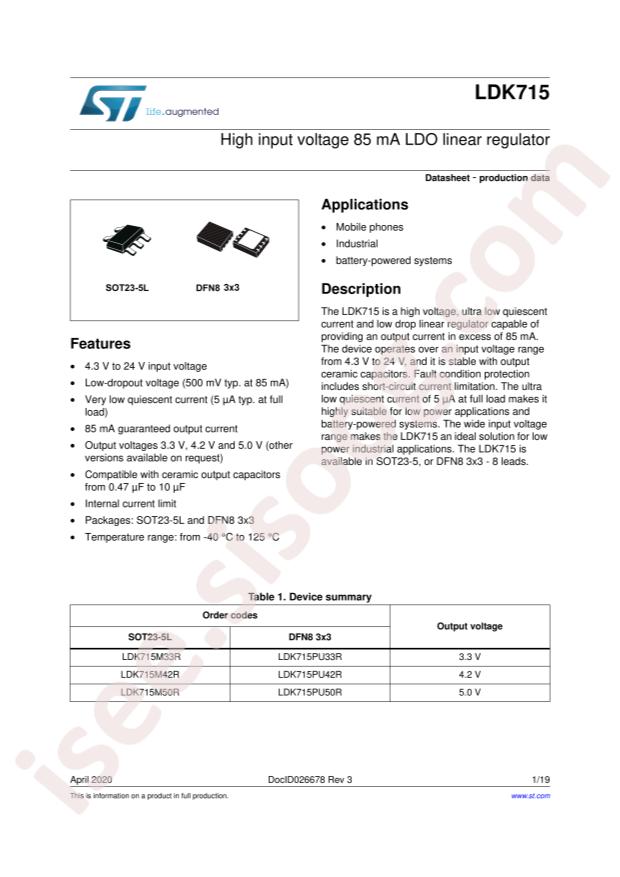

LDK715M33R دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LDK715M33R |
|---|---|
| حجم فایل | 60.939 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت LDK715M33R |
دانلود دیتاشیت |
|---|
سایر مستندات
LDK715 Datasheet 19 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: STMicroelectronics LDK715M33R
- Output Current: 85mA
- Output Voltage: 3.3V
- Dropout Voltage: 1V@(85mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 24V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 7uA
- Package: SOT-23-5
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 24V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 1V @ 85mA
- Current - Output: 85mA
- Current - Quiescent (Iq): 7µA
- Current - Supply (Max): 8.5µA
- PSRR: 57dB ~ 38dB (100kHz ~ 1kHz)
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: SC-74A, SOT-753
- Supplier Device Package: SOT-23-5
- Base Part Number: LDK715
- detail: Linear Voltage Regulator IC 1 Output 85mA SOT-23-5
