TS3A4742DCNR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TS3A4742DCNR	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments TS3A4742DCNR
Turn-on time: 14ns
Turn-off time: 9ns
Supply Voltage: 1.6V~3.6V
Switch Circuit: SPST(SPST)-Normally closed
Number of Channels: 2
On-State Resistance (Max): 900mΩ

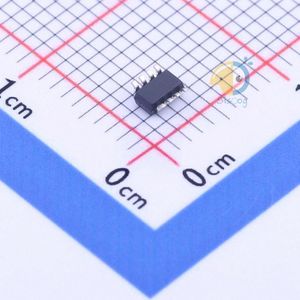

Package: SOT-23-8
Manufacturer: Texas Instruments
Current - Leakage (IS(off)) (Max): 2nA
Voltage - Supply, Single (V+): 1.6V ~ 3.6V
Voltage - Supply, Dual (V±): -
Number of Circuits: 2
Channel-to-Channel Matching (ΔRon): 30mOhm
Package / Case: SOT-23-8
Part Status: Active
Supplier Device Package: SOT-23-8
Switch Time (Ton, Toff) (Max): 14ns, 9ns
Packaging: Cut Tape (CT)
-3db Bandwidth: 125MHz
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Crosstalk: -95dB @ 1MHz
Base Part Number: TS3A47
Series: -
Channel Capacitance (CS(off), CD(off)): 23pF, 20pF
Multiplexer/Demultiplexer Circuit: 1:1
Charge Injection: 3pC
detail: 2 Circuit IC Switch 1:1 900mOhm SOT-23-8
