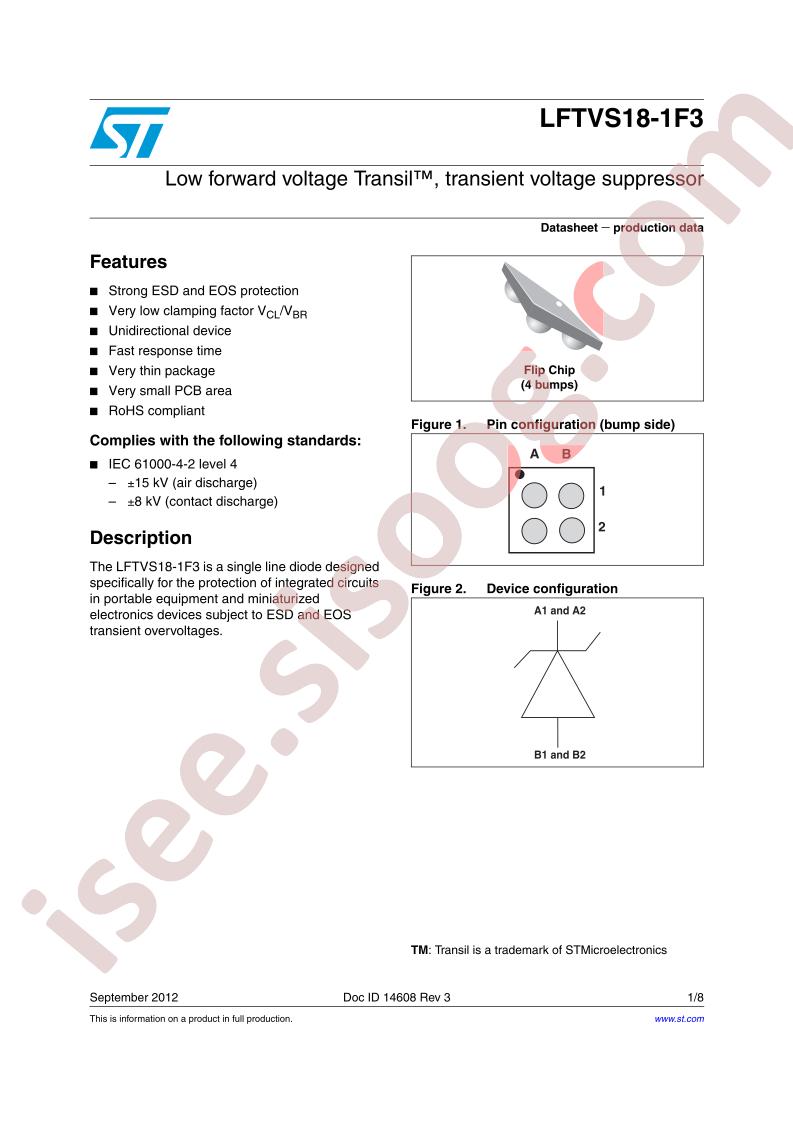

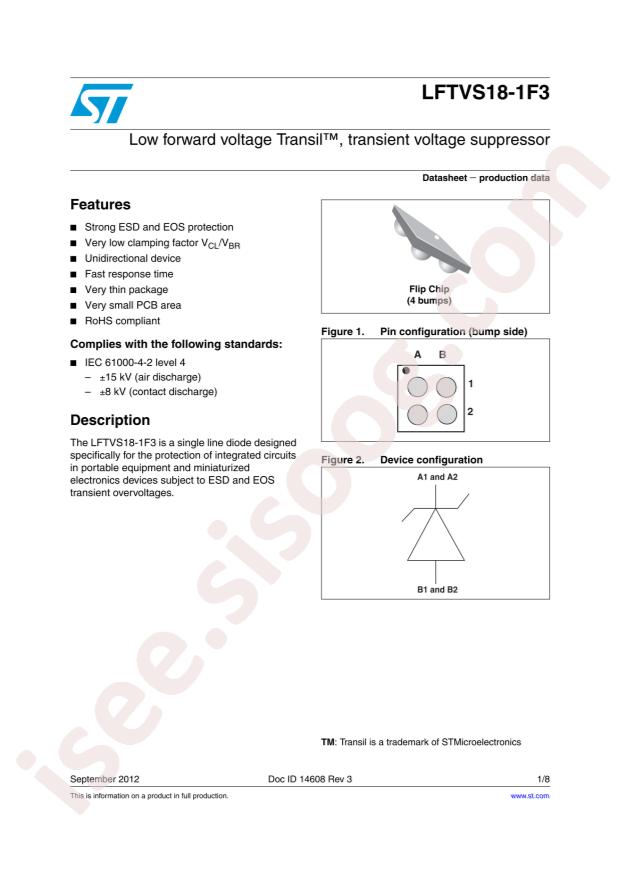

دیتاشیت LFTVS18-1F3
مشخصات دیتاشیت
| نام دیتاشیت |
LFTVS18-1F3
|
| حجم فایل |
202.639
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
STMicroelectronics LFTVS18-1F3
-
Number of Lines:
1
-
Clamping Voltage@Ipp:
19V
-
Operating Temperature:
-
-
Breakdown Voltage (VBR):
16V
-
Peak Pulse Power(Ppp)@8/20us:
350W
-
Junction Capacitance(Cj)@1MHz:
175pF@1MHz
-
Peak Pulse Current(Ipp)@8/20us:
1A@(8/20us)
-
Reverse Stand-Off Voltage (Vrwm):
12V
-
Package:
FlipChip-4(0.77x0.77)
-
Manufacturer:
STMicroelectronics
-
Series:
LFTVS, TRANSIL™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Zener
-
Unidirectional Channels:
1
-
Voltage - Reverse Standoff (Typ):
12V
-
Voltage - Breakdown (Min):
16V
-
Voltage - Clamping (Max) @ Ipp:
19V
-
Current - Peak Pulse (10/1000µs):
1A (8/20µs)
-
Power - Peak Pulse:
350W
-
Power Line Protection:
No
-
Applications:
General Purpose
-
Capacitance @ Frequency:
175pF @ 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
4-UFBGA, FCBGA
-
Supplier Device Package:
4-FlipChip (0.77x0.77)
-
Base Part Number:
LFTVS18
-
detail:
19V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 4-FlipChip (0.77x0.77)
