- دیتاشیت UCC27712DR
دیتاشیت UCC27712DR
مشخصات دیتاشیت
| نام دیتاشیت | UCC27712DR |
|---|---|
| حجم فایل | 115.557 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 42 |
UCC27712DR |
دانلود دیتاشیت |
|---|
سایر مستندات

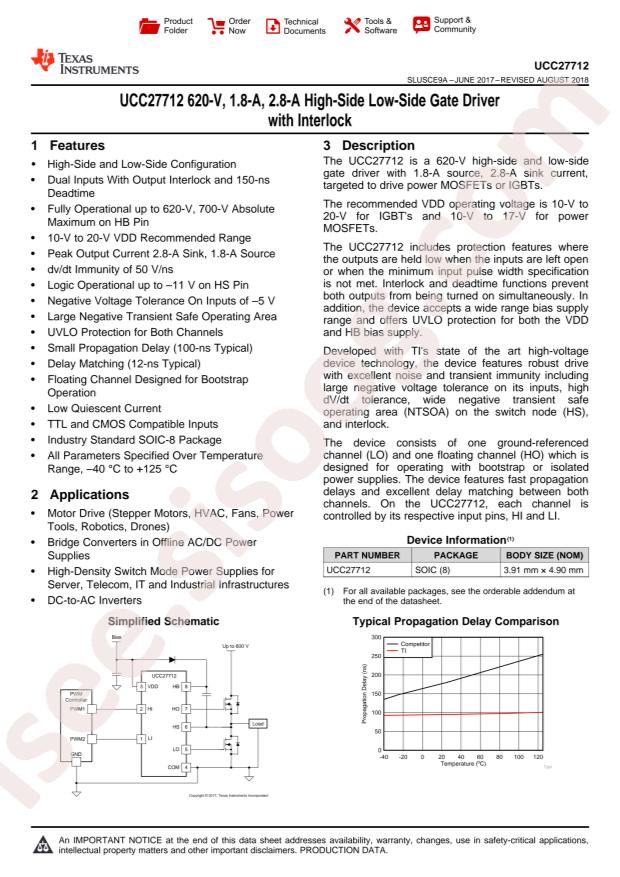

UCC27712 Datasheet 42 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Texas Instruments UCC27712DR
- Fall Time: 10ns
- Load Type: IGBT;MOSFET
- Rise Time: 16ns
- Supply Voltage: 10V~20V
- Number of Drivers: 2
- Driven Configuration: Half Bridge
- Operating Temperature: -40°C~+125°C@(Tj)
- Peak Output Current(sink): 2.8A
- Peak Output Current(source): 1.8A
- Package: SOP-8
- Manufacturer: Texas Instruments
- Channel Type: Synchronous
- Input Type: -
- Voltage - Supply: 10V ~ 20V
- Series: -
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Part Status: Active
- Logic Voltage - VIL, VIH: 1.5V, 1.6V
- Rise / Fall Time (Typ): 16ns, 10ns
- Gate Type: IGBT, N-Channel, P-Channel MOSFET
- Base Part Number: UCC277
- High Side Voltage - Max (Bootstrap): 700V
- Current - Peak Output (Source, Sink): 1.8A, 2.8A
- detail: Half-Bridge Gate Driver IC 8-SOIC
