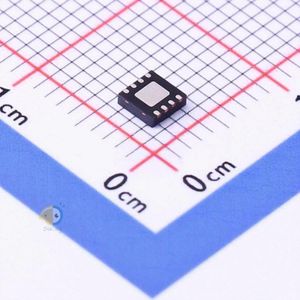

LD59100PUR دیتاشیت

LD59100PUR

مشخصات دیتاشیت

نام دیتاشیت LD59100PUR
حجم فایل 51.488 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

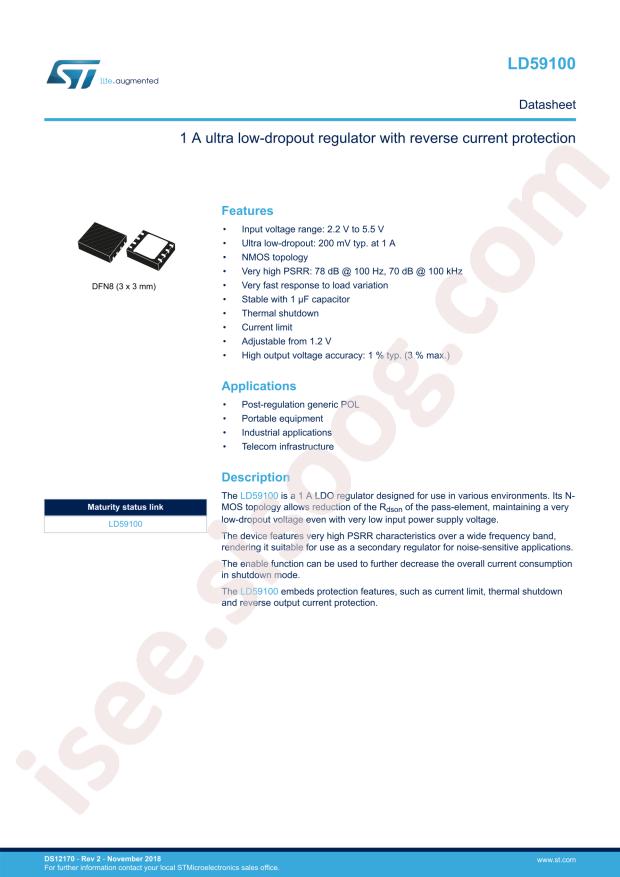

مشاهده دیتاشیت LD59100PUR

دانلود دیتاشیت

سایر مستندات

LD59100 19 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: STMicroelectronics LD59100PUR
  • Output Type: Adjustable
  • Output Current: 1A
  • Output Voltage: 1.192V~5V
  • Dropout Voltage: 0.5V@(1A)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 5.5V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 130uA
  • Package: DFN-8(3x3)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 0.3V
  • Voltage - Output (Max): 5.5V
  • Voltage Dropout (Max): 0.5V @ 1A
  • Current - Output: 1A
  • Current - Quiescent (Iq): 130µA
  • Current - Supply (Max): 280µA
  • PSRR: 78dB ~ 58dB (100Hz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Mounting Type: Surface Mount
  • Package / Case: 8-VDFN Exposed Pad
  • Supplier Device Package: 8-DFN (3x3)
  • Base Part Number: LD59100
  • detail: Linear Voltage Regulator IC 1 Output 1A 8-DFN (3x3)
