STD8NF25 دیتاشیت

STD8NF25

مشخصات دیتاشیت

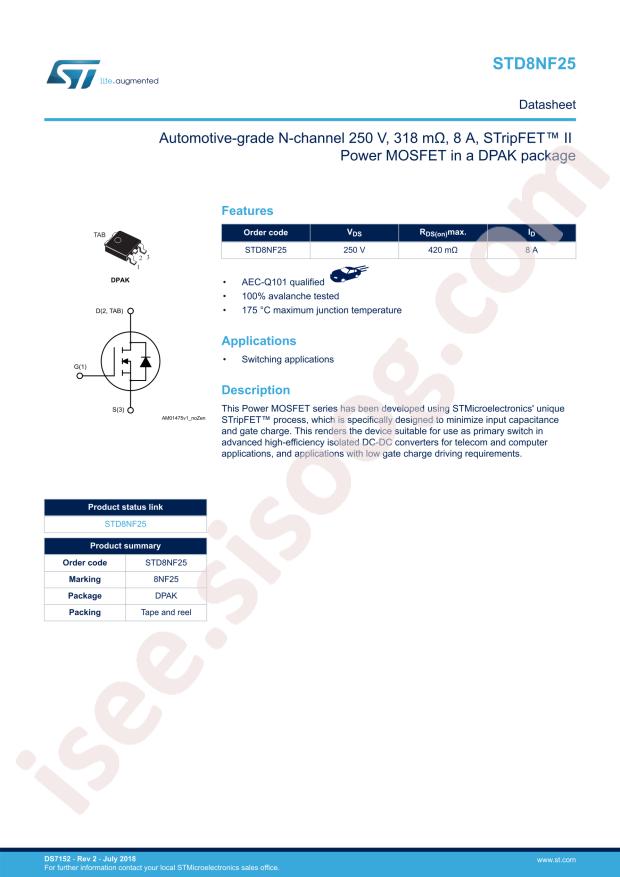

نام دیتاشیت STD8NF25
حجم فایل 50.181 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

مشاهده دیتاشیت STD8NF25

دانلود دیتاشیت

سایر مستندات

STD8NF25 16 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STD8NF25
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 72W
  • Total Gate Charge (Qg@Vgs): 16nC@10V
  • Drain Source Voltage (Vdss): 250V
  • Input Capacitance (Ciss@Vds): 500pF@25V
  • Continuous Drain Current (Id): 8A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 420mΩ@10V,8A
  • Package: TO-252
  • Manufacturer: STMicroelectronics
  • Series: STripFET™ II
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 250V
  • Current - Continuous Drain (Id) @ 25°C: 8A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 420mOhm @ 8A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 16nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 500pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 72W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD8N
  • detail: N-Channel 250V 8A (Tc) 72W (Tc) Surface Mount DPAK
