دیتاشیت UCC27424DGNR

UCC27423-25

مشخصات دیتاشیت

نام دیتاشیت UCC27423-25
حجم فایل 2209.29 کیلوبایت
نوع فایل pdf
تعداد صفحات 39

دانلود دیتاشیت UCC27423-25

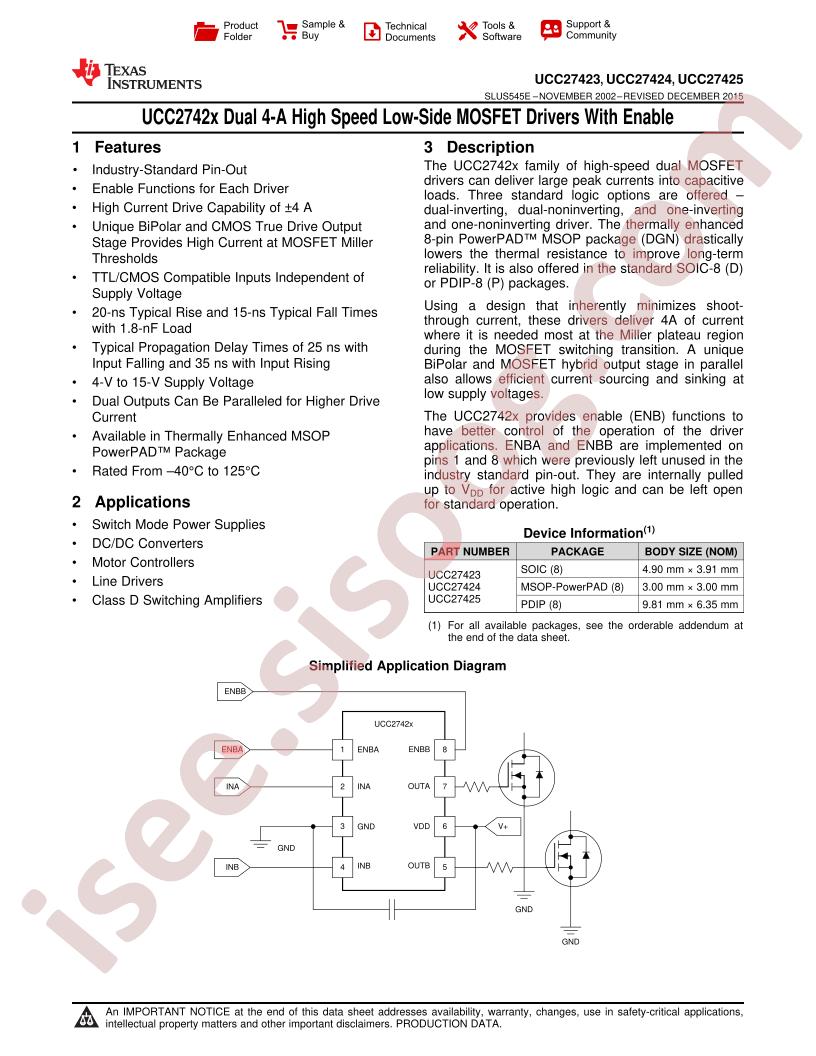

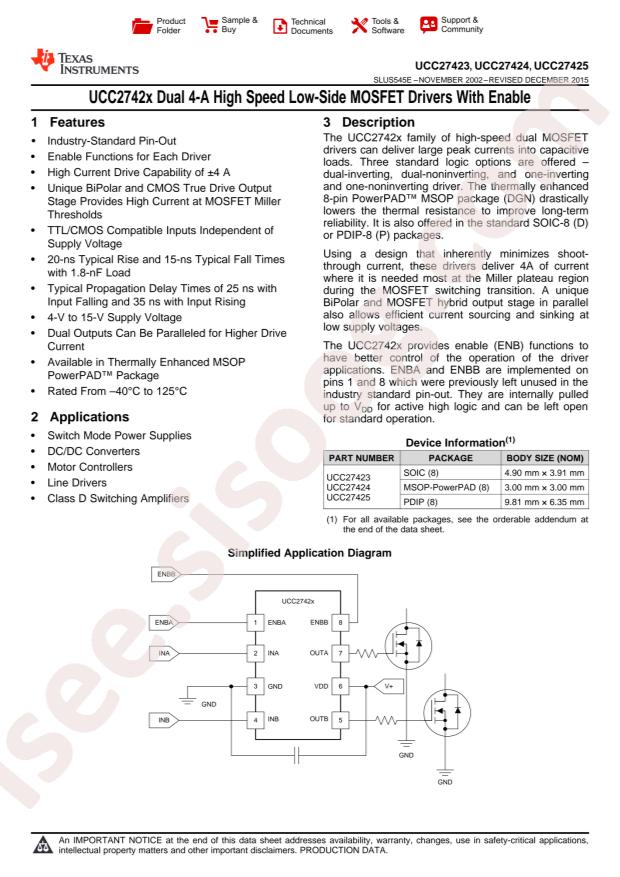

UCC27423-25 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27424DGNR
  • Fall Time: 15ns
  • Load Type: MOSFET
  • Rise Time: 20ns
  • Supply Voltage: 4V~15V
  • Number of Drivers: 2
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+125°C@(Ta)
  • Peak Output Current(sink): 4A
  • Peak Output Current(source): 4A

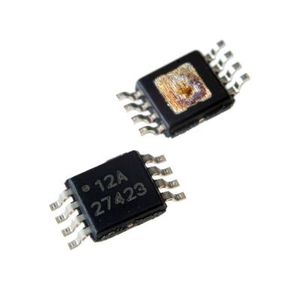

  • Package: HVSSOP-8-EP-0.65mm
  • Manufacturer: Texas Instruments
  • Channel Type: Independent
  • Input Type: Non-Inverting
  • Voltage - Supply: 4V ~ 15V
  • Series: -
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
  • Part Status: Active
  • Logic Voltage - VIL, VIH: 1V, 2V
  • Rise / Fall Time (Typ): 20ns, 15ns
  • Gate Type: N-Channel, P-Channel MOSFET
  • Base Part Number: UCC274
  • Supplier Device Package: 8-MSOP-PowerPad
  • Current - Peak Output (Source, Sink): 4A, 4A
  • detail: Low-Side Gate Driver IC Non-Inverting 8-MSOP-PowerPad
