TLC5973DR دیتاشیت

TLC5973DR

مشخصات دیتاشیت

نام دیتاشیت TLC5973DR
حجم فایل 75.653 کیلوبایت
نوع فایل pdf
تعداد صفحات 37

مشاهده دیتاشیت TLC5973DR

دانلود دیتاشیت

سایر مستندات

TLC5973 37 pages

مشخصات فنی

  • RoHS: true
  • Type: Linear
  • Category: Nixie Tube Driver/LED Driver/LED Drivers
  • Channels: 3
  • Topology: Shift Register
  • Datasheet: Texas Instruments TLC5973DR
  • Input Voltage: 3V~6V
  • Output Current: 50mA
  • Output Voltage: 21V
  • Switch Frequency: 12MHz
  • Operating temperature: -40°C~+85°C

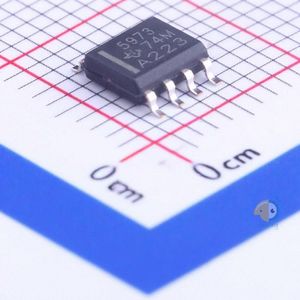

  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Internal Switch(s): Yes
  • Voltage - Output: 21V
  • Voltage - Supply (Max): 6V
  • Part Status: Active
  • Applications: -
  • Voltage - Supply (Min): 3V
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Frequency: 12MHz
  • Packaging: Cut Tape (CT)
  • Dimming: -
  • Series: EasySet™
  • Base Part Number: TLC597
  • Supplier Device Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Number of Outputs: 3
  • Current - Output / Channel: 50mA
  • detail: LED Driver IC 3 Output Linear Shift Register Dimming 50mA 8-SOIC
