دیتاشیت SN74HC688PWR

SN54HC688, SN74HC688

مشخصات دیتاشیت

نام دیتاشیت SN54HC688, SN74HC688
حجم فایل 1306.205 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت SN54HC688, SN74HC688

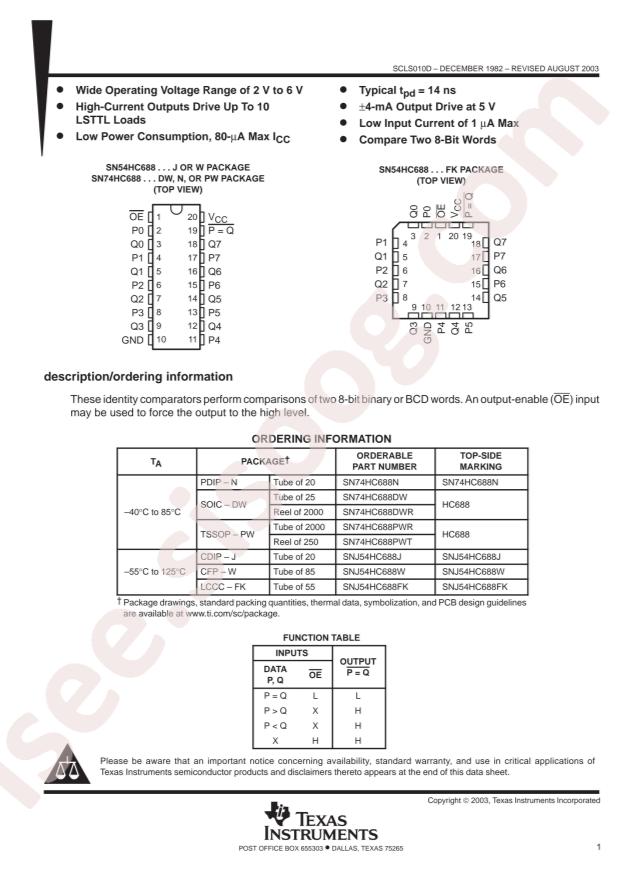

SN54HC688, SN74HC688 Datasheet

مشخصات

  • RoHS: true
  • Output: Active Low
  • Category: Logic ICs/Digital Comparators
  • Datasheet: Texas Instruments SN74HC688PWR
  • Sink Current: 5.2mA
  • Source Current: 5.2mA
  • Supply Voltage: 2V~6V
  • Output Function: A=B
  • Quiescent Current: 8uA
  • Number of Channels: 8
  • Operating Temperature: -40°C~+85°C
  • Maximum Propagation Delay: 36ns@6V,50pF
  • Package: TSSOP-20
  • Manufacturer: Texas Instruments
  • Voltage - Supply: 2V ~ 6V
  • Package / Case: 20-TSSOP (0.173", 4.40mm Width)
  • Packaging: Cut Tape (CT)
  • Type: Identity Comparator
  • Base Part Number: SN74HC6
  • Part Status: Active
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Series: 74HC
  • Number of Bits: 8
  • Supplier Device Package: 20-TSSOP
  • Mounting Type: Surface Mount
  • Current - Quiescent (Iq): 8µA
  • Max Propagation Delay @ V, Max CL: 36ns @ 6V, 50pF
  • detail: Magnitude Comparator Bit Active Low Output A=B 20-TSSOP
