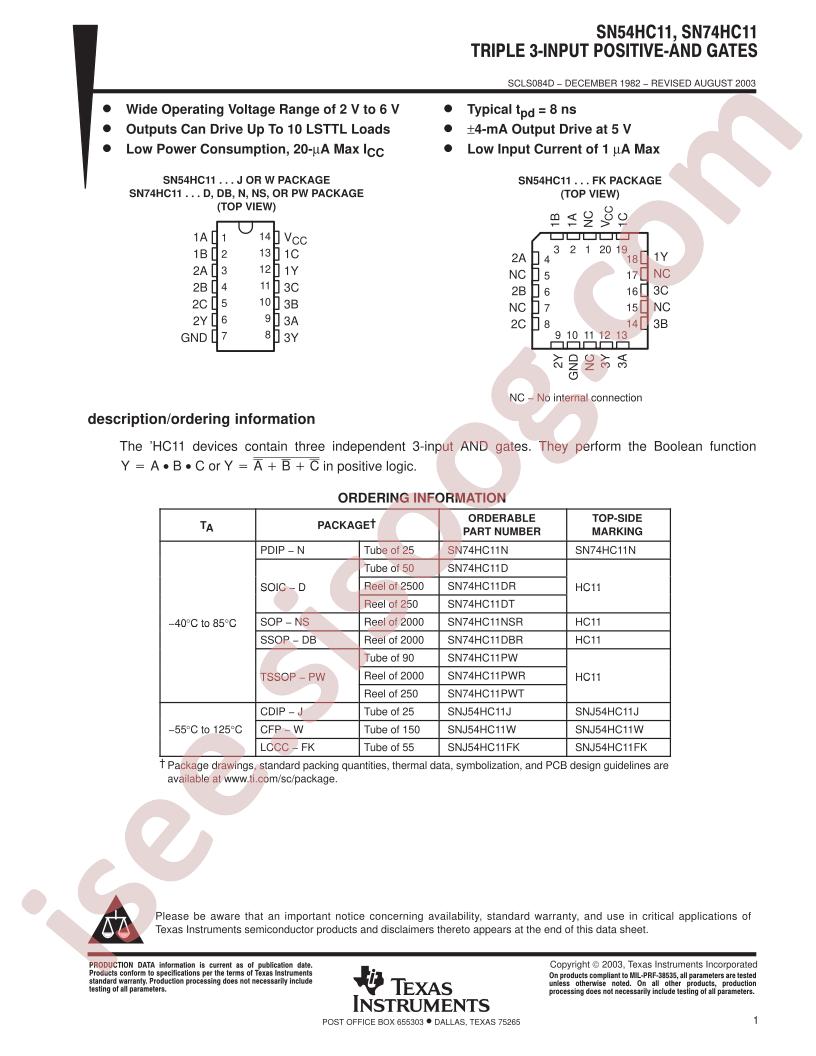

SN54HC11, SN74HC11 دیتاشیت

SN54HC11, SN74HC11

مشخصات دیتاشیت

نام دیتاشیت SN54HC11, SN74HC11
حجم فایل 1257.805 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت SN54HC11, SN74HC11

دانلود دیتاشیت

سایر مستندات

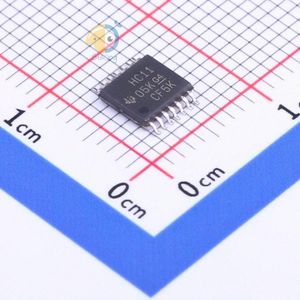

SN74HC11PWR 31 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74HC11N
  • Sink Current: 5.2mA
  • Source Current: 5.2mA
  • Supply Voltage: 2V~6V
  • Logic Gate Type: And
  • Number of Channels: 3
  • Low Level Range (VIL): 0.5V~1.8V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 1.5V~4.2V
  • Propagation Delay Time: 17ns@6V,50pF
  • Quiescent Current (Max): 2uA
  • Package: DIP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Logic Level - Low: 0.5V ~ 1.8V
  • Current - Quiescent (Max): 2µA
  • Voltage - Supply: 2V ~ 6V
  • Number of Circuits: 3
  • Packaging: Tube
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Logic Level - High: 1.5V ~ 4.2V
  • Part Status: Active
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Features: -
  • Base Part Number: SN74HC1
  • Supplier Device Package: 14-PDIP
  • Number of Inputs: 3
  • Logic Type: AND Gate
  • Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
  • detail: AND Gate IC 3 Channel 14-PDIP
