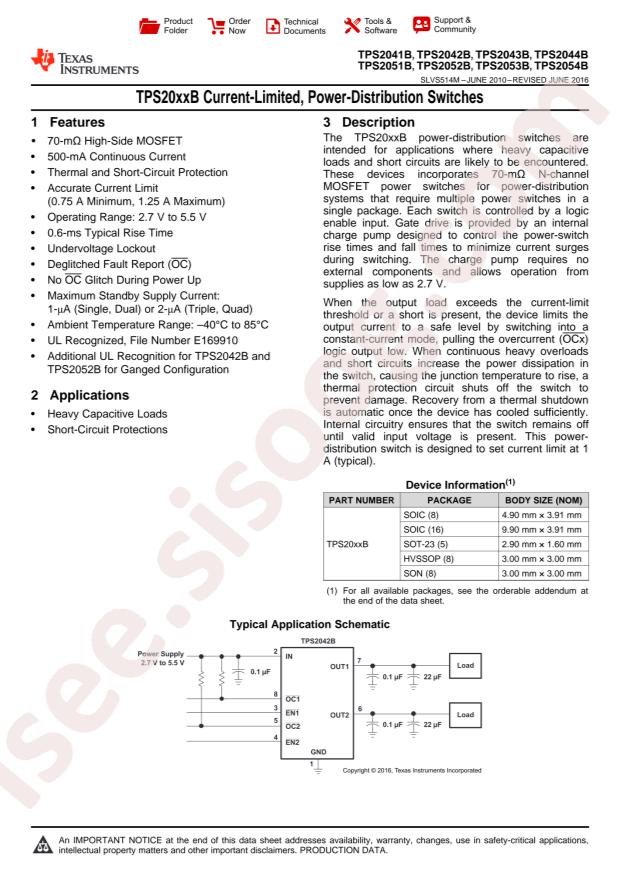

TPS2041BDR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TPS2041BDR |
|---|---|
| حجم فایل | 103.216 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 64 |
دانلود دیتاشیت TPS2041BDR |
دانلود دیتاشیت |
|---|
سایر مستندات
TPS2041B-44B, 51B-54B Datasheet 65 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: Texas Instruments TPS2041BDR
- Input Voltage: 2.7V~5.5V
- Output Current: 500mA
- Number of Outputs: 1
- Resistor On-State: 70mΩ
- Operating Temperature -: -40°C~+85°C
- Package: SOP-8
- Manufacturer: Texas Instruments
- Input Type: Non-Inverting
- Output Configuration: High Side
- Operating Temperature: -40°C ~ 125°C (TJ)
- Packaging: Cut Tape (CT)
- Ratio - Input:Output: 1:1
- Switch Type: General Purpose
- Part Status: Active
- Supplier Device Package: 8-SOIC
- Mounting Type: Surface Mount
- Fault Protection: Current Limiting (Fixed), Over Temperature, UVLO
- Rds On (Typ): 70mOhm
- Current - Output (Max): 500mA
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Series: -
- Interface: On/Off
- Base Part Number: TPS204
- Features: Status Flag
- Output Type: N-Channel
- Voltage - Supply (Vcc/Vdd): Not Required
- Voltage - Load: 2.7V ~ 5.5V
- detail: Power Switch/Driver 1:1 N-Channel 500mA 8-SOIC
