STD5N60DM2 Datasheet دیتاشیت

STD5N60DM2 Datasheet

مشخصات دیتاشیت

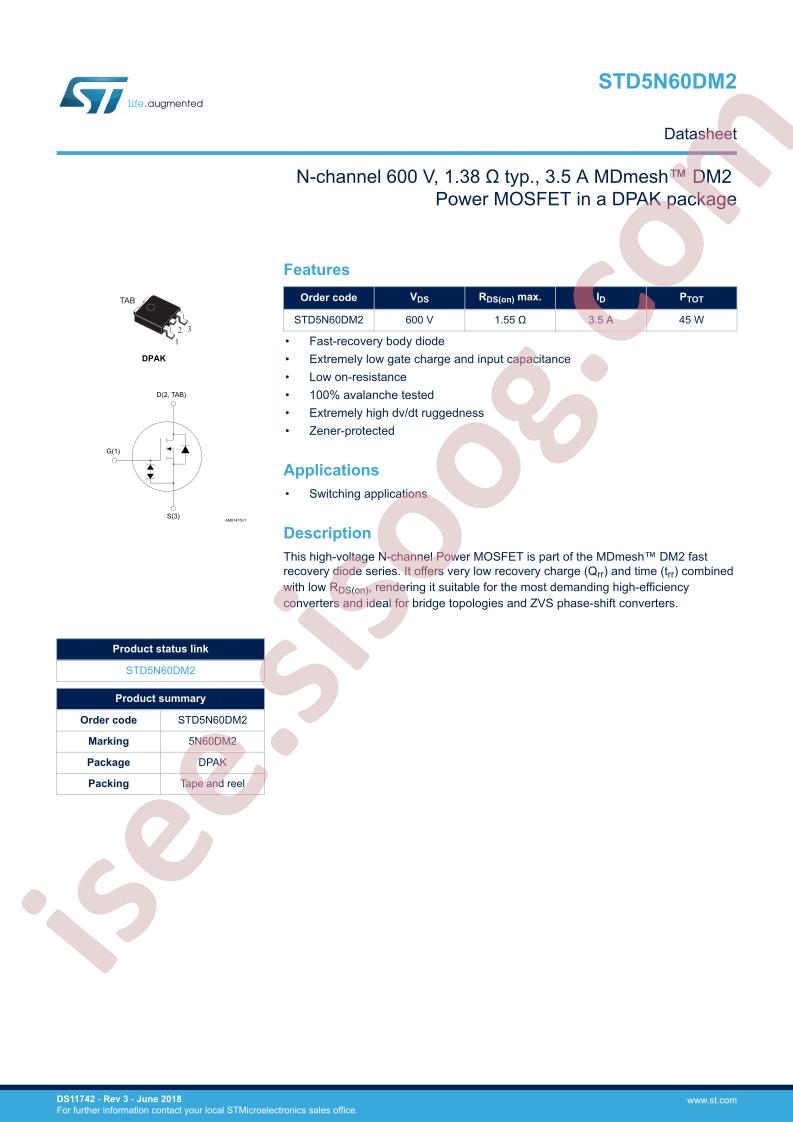

نام دیتاشیت STD5N60DM2 Datasheet
حجم فایل 395.471 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

مشاهده دیتاشیت STD5N60DM2 Datasheet

دانلود دیتاشیت

سایر مستندات

STD5N60DM2 18 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STD5N60DM2
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 45W
  • Total Gate Charge (Qg@Vgs): 8.6nC@10V
  • Drain Source Voltage (Vdss): 600V
  • Input Capacitance (Ciss@Vds): 375pF@100V
  • Continuous Drain Current (Id): 3.5A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 3.5pF@100V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1.38Ω@10V,1.75A
  • Package: TO-252
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ DM2
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 3.5A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.55Ohm @ 1.75A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 8.6nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 375pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 45W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD5N
  • detail: N-Channel 600V 3.5A (Tc) 45W (Tc) Surface Mount DPAK
