SPT01-335DEE دیتاشیت

SPT01-335DEE

مشخصات دیتاشیت

نام دیتاشیت SPT01-335DEE
حجم فایل 71.108 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

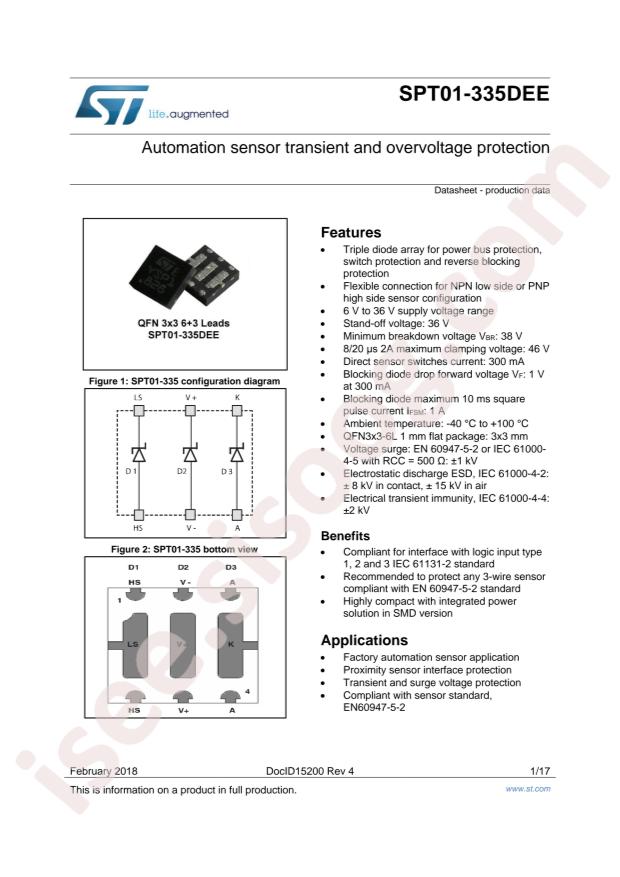

مشاهده دیتاشیت SPT01-335DEE

دانلود دیتاشیت

سایر مستندات

SPT01-335DEE 17 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics SPT01-335DEE
  • Number of Lines: 3
  • Clamping Voltage@Ipp: 46V
  • Operating Temperature: -40°C~+175°C@(Tj)
  • Breakdown Voltage (VBR): 38V
  • Peak Pulse Power(Ppp)@8/20us: 100W
  • Junction Capacitance(Cj)@1MHz: -
  • Peak Pulse Current(Ipp)@8/20us: 2A@(8/20us)
  • Reverse Stand-Off Voltage (Vrwm): 33V
  • Package: QFN-9(3x3)
  • Manufacturer: STMicroelectronics
  • Series: SPT
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 3
  • Voltage - Reverse Standoff (Typ): 33V
  • Voltage - Breakdown (Min): 38V
  • Voltage - Clamping (Max) @ Ipp: 46V
  • Current - Peak Pulse (10/1000µs): 2A (8/20µs)
  • Power - Peak Pulse: 100W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Mounting Type: Surface Mount
  • Package / Case: 6-VQFN Exposed Pad
  • Supplier Device Package: 6+3-QFN (3x3)
  • Base Part Number: SPT01
  • detail: 46V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 6+3-QFN (3x3)
