ALTAIR04-900TR دیتاشیت

ALTAIR04-900TR

مشخصات دیتاشیت

نام دیتاشیت ALTAIR04-900TR
حجم فایل 65.419 کیلوبایت
نوع فایل pdf
تعداد صفحات 29

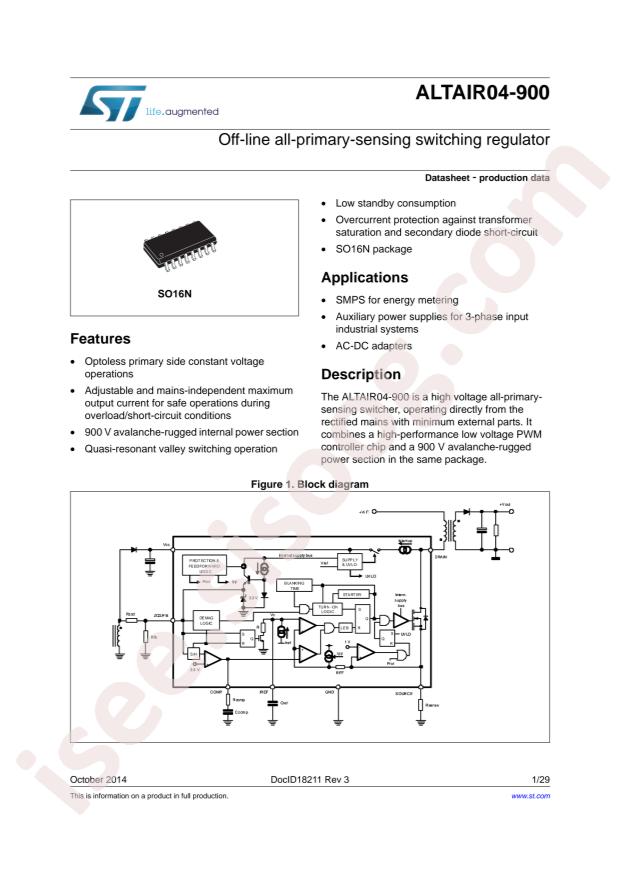

دانلود دیتاشیت ALTAIR04-900TR

دانلود دیتاشیت

سایر مستندات

ALTAIR04-900 29 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback
  • Datasheet: STMicroelectronics ALTAIR04-900TR
  • Supply Voltage: 11.5V~23V
  • Output Isolation: Isolation
  • Breakdown Voltage: 900V
  • Switching Frequency: 166kHz
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: SOP-16
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 900V
  • Voltage - Start Up: 13V
  • Voltage - Supply (Vcc/Vdd): 11.5V ~ 23V
  • Duty Cycle: -
  • Frequency - Switching: Up to 166kHz
  • Fault Protection: Current Limiting, Short Circuit
  • Control Features: -
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SO
  • Mounting Type: Surface Mount
  • Base Part Number: ALTAIR04
  • detail: Converter Offline Flyback Topology Up to 166kHz 16-SO
