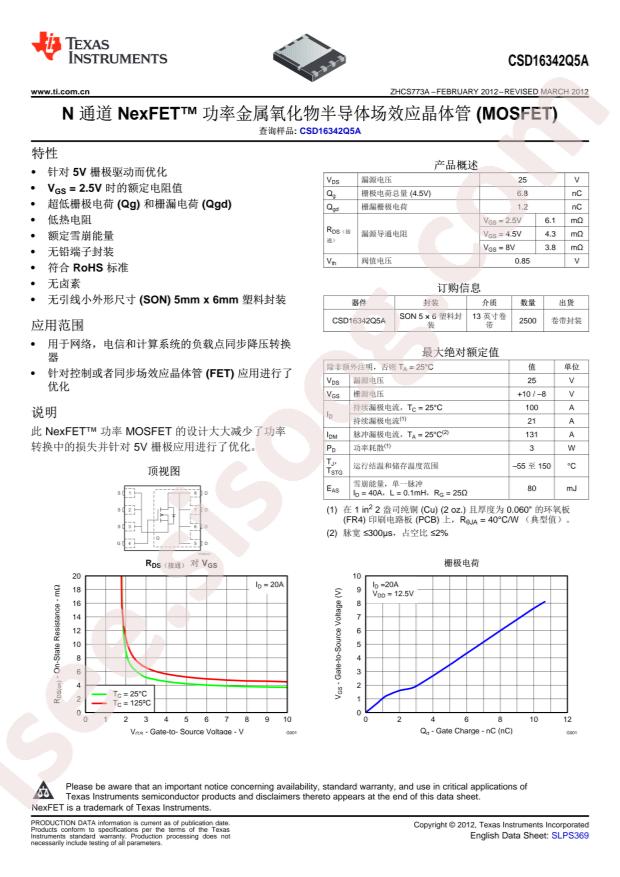

CSD16342Q5A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD16342Q5A
|
|
حجم فایل
|
87.535
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD16342Q5A
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3W
-
Total Gate Charge (Qg@Vgs):
7.1nC@4.5V
-
Drain Source Voltage (Vdss):
25V
-
Input Capacitance (Ciss@Vds):
1350pF@12.5V
-
Continuous Drain Current (Id):
100A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
4.7mΩ@20A,8V
-
Package:
VSONP-8
-
Manufacturer:
Texas Instruments
-
Power Dissipation (Max):
3W (Ta)
-
Drain to Source Voltage (Vdss):
25V
-
Rds On (Max) @ Id, Vgs:
4.7mOhm @ 20A, 8V
-
Vgs (Max):
+10V, -8V
-
FET Type:
N-Channel
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 8V
-
Technology:
MOSFET (Metal Oxide)
-
Current - Continuous Drain (Id) @ 25°C:
100A (Tc)
-
FET Feature:
-
-
Input Capacitance (Ciss) (Max) @ Vds:
1350pF @ 12.5V
-
Packaging:
Cut Tape (CT)
-
Package / Case:
8-PowerTDFN
-
Part Status:
Active
-
Series:
NexFET™
-
Vgs(th) (Max) @ Id:
1.1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
7.1nC @ 4.5V
-
Supplier Device Package:
8-VSONP (5x6)
-
Mounting Type:
Surface Mount
-
Base Part Number:
CSD1634
-
detail:
N-Channel 25V 100A (Tc) 3W (Ta) Surface Mount 8-VSONP (5x6)
