دیتاشیت SN74LS04DR
مشخصات دیتاشیت
| نام دیتاشیت | SN54,74(LS,S)04 Datasheet |
|---|---|
| حجم فایل | 1288.952 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت SN54,74(LS,S)04 Datasheet |
SN54,74(LS,S)04 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LS
- Category: Logic ICs/Inverters

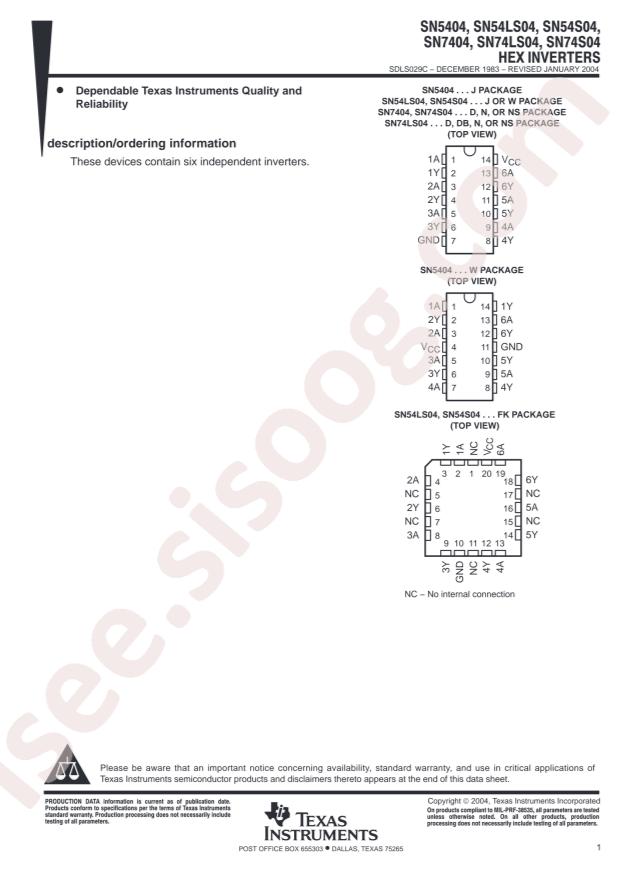

- Datasheet: Texas Instruments SN74LS04DR
- Sink Current: 8mA
- Source Current: 400uA
- Number of Inputs: 1
- Number of Circuits: 6
- Low level range (VIL): 0.8V
- Max Propagation Delay: 15ns@5V,15pF
- Operating Temperature: 0°C~+70°C
- High level range (VIH): 2V
- Supply Voltage(Single): 4.75V~5.25V
- Package: SOP-14
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Logic Level - Low: 0.8V
- Voltage - Supply: 4.75V ~ 5.25V
- Packaging: Cut Tape (CT)
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Logic Level - High: 2V
- Part Status: Active
- Current - Output High, Low: 400µA, 8mA
- Features: -
- Base Part Number: SN74LS04
- Supplier Device Package: 14-SOIC
- Logic Type: Inverter
- Max Propagation Delay @ V, Max CL: 15ns @ 5V, 15pF
- detail: Inverter IC 6 Channel 14-SOIC
