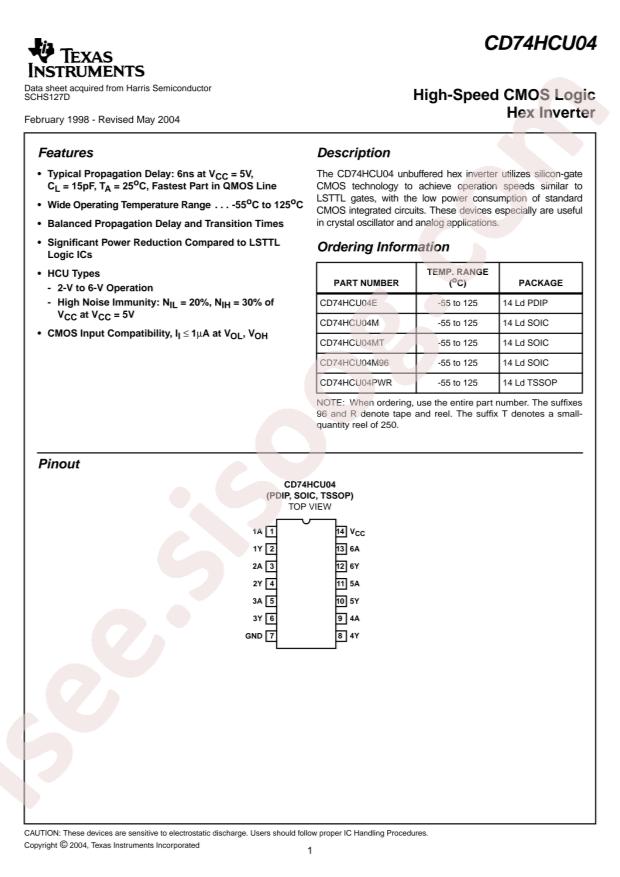

دیتاشیت CD74HCU04E
مشخصات دیتاشیت
| نام دیتاشیت | CD74HCU04E |
|---|---|
| حجم فایل | 68.785 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
CD74HCU04E |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
Signal Switch Data Book 1267 pages
Digital Logic Data Book 794 pages
CD74HCU04 15 pages
مشخصات فنی
- RoHS: true
- Series: 74HCU
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments CD74HCU04E
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Number of Inputs: 1
- Number of Circuits: 6
- Supply Current (Max): 2uA
- Low level range (VIL): 0.3V~1.1V
- Max Propagation Delay: 12ns@6V,50pF
- Operating Temperature: -55°C~+125°C
- High level range (VIH): 1.7V~4.8V
- Supply Voltage(Single): 2V~6V
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Logic Level - Low: 0.3V ~ 1.1V
- Current - Quiescent (Max): 2µA
- Voltage - Supply: 2V ~ 6V
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Level - High: 1.7V ~ 4.8V
- Part Status: Active
- Current - Output High, Low: 5.2mA, 5.2mA
- Features: -
- Base Part Number: 74HCU04
- Supplier Device Package: 14-PDIP
- Logic Type: Inverter
- Max Propagation Delay @ V, Max CL: 12ns @ 6V, 50pF
- detail: Inverter IC 6 Channel 14-PDIP
