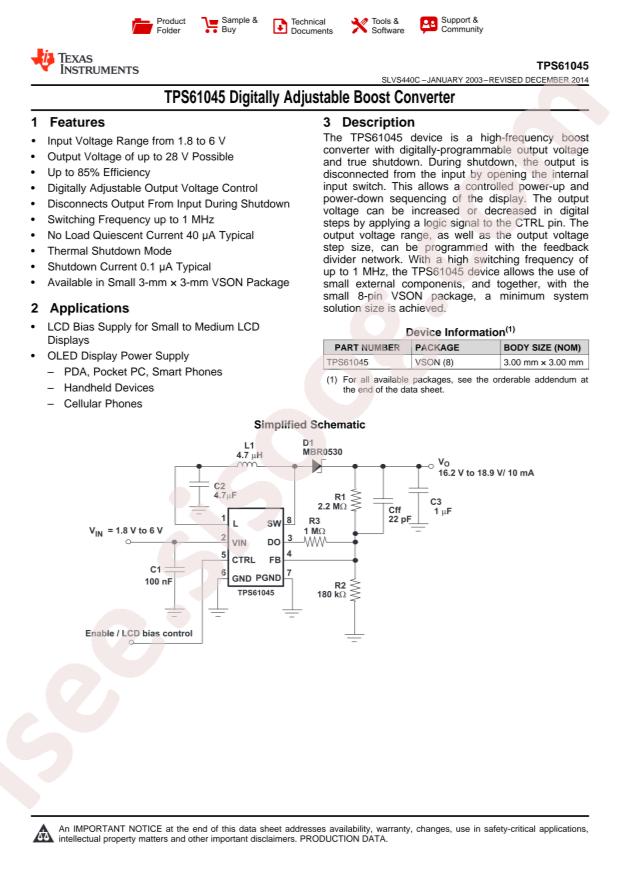

TPS61045DRBR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS61045DRBR
|
|
حجم فایل
|
79.978
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
27
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType
-
Topology:
Boost
-
Datasheet:
Texas Instruments TPS61045DRBR
-
Output Type:
Adjustable
-
Input Voltage:
1.8V~6V
-
Output Voltage:
1.8V~28V
-
Number of Outputs:
1
-
Switching Frequency:
1MHz
-
Output Current (Max):
300mA
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
DFN-8(3x3)
-
Manufacturer:
Texas Instruments
-
Current - Output:
300mA (Switch)
-
Voltage - Input (Max):
6V
-
Frequency - Switching:
Up to 1MHz
-
Part Status:
Active
-
Base Part Number:
TPS610
-
Voltage - Output (Min/Fixed):
1.8V
-
Package / Case:
8-VDFN Exposed Pad
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Synchronous Rectifier:
No
-
Output Configuration:
Positive
-
Voltage - Output (Max):
28V
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-SON (3x3)
-
Voltage - Input (Min):
1.8V
-
detail:
Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 300mA (Switch) 8-VDFN Exposed Pad
