TS5A22362YZPR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TS5A22362YZPR	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments TS5A22362YZPR
Turn-on time: 80ns
Turn-off time: 70ns
Supply Voltage: 2.3V~5.5V
Switch Circuit: SPDT(SPDT)
Number of Channels: 2
On-State Resistance (Max): 740mΩ

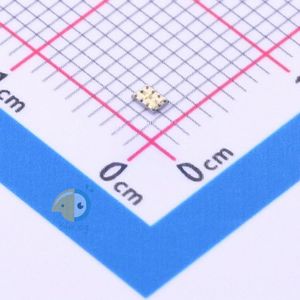

Package: BGA-10
Manufacturer: Texas Instruments
Current - Leakage (IS(off)) (Max): 50nA
Voltage - Supply, Single (V+): 2.3V ~ 5.5V
Voltage - Supply, Dual (V±): -
Number of Circuits: 2
Channel-to-Channel Matching (ΔRon): 40mOhm
Package / Case: 10-XFBGA, DSBGA
Part Status: Active
Supplier Device Package: 10-DSBGA
Switch Time (Ton, Toff) (Max): 80ns, 70ns
Packaging: Cut Tape (CT)
-3db Bandwidth: 18.3MHz
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Crosstalk: -78dB @ 100kHz
Base Part Number: TS5A223
Series: -
Channel Capacitance (CS(off), CD(off)): 70pF
Multiplexer/Demultiplexer Circuit: 2:1
Charge Injection: 10pC
detail: 2 Circuit IC Switch 2:1 740mOhm 10-DSBGA
