- دیتاشیت STM8S903K3T6CTR

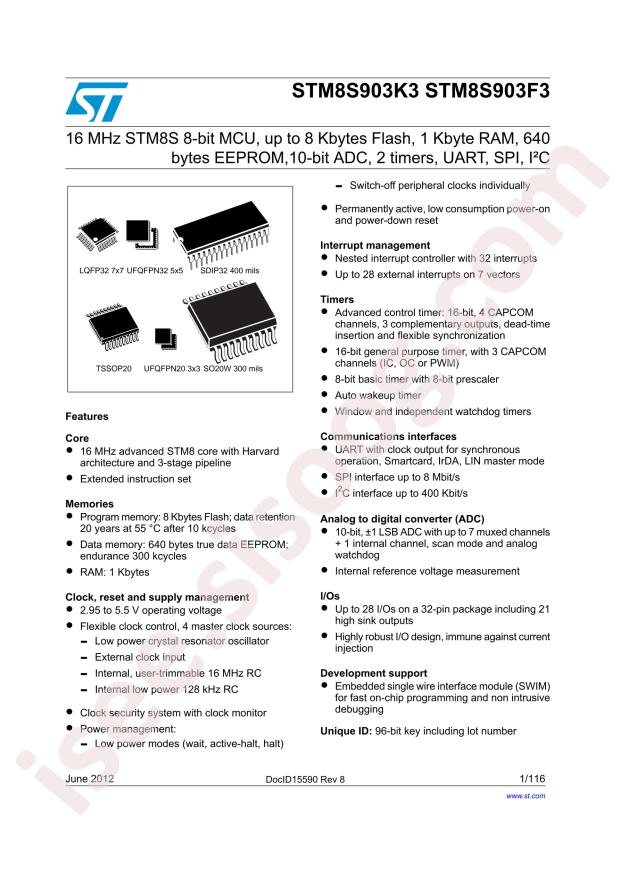

STM8S903K3T6CTR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STM8S903K3T6CTR |
|---|---|
| حجم فایل | 88.143 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 116 |
دانلود دیتاشیت STM8S903K3T6CTR |
دانلود دیتاشیت |
|---|
سایر مستندات
STM8S903K3, STM8S903F3 Datasheet 124 pages
STM8 CPU Programming Manual 162 pages
STM8S003, 103, 903 Errata 18 pages
STM8S, STM8AF Reference Manual 467 pages
مشخصات فنی
- RoHS: true
- CPU Core: STM8
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- Watchdog: Yes
- ADC (Bit): 10bit
- Datasheet: STMicroelectronics STM8S903K3T6CTR
- CPU Maximum Speed: 16MHz
- GPIO Ports Number: 28
- Low-Voltage Detect: Yes
- Internal Oscillator: Yes
- Program Storage Size: 8KB
- Operating Voltage Range: 2.95V~5.5V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Package: LQFP-32(7x7)
- Manufacturer: STMicroelectronics
- Series: STM8S
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: STM8
- Core Size: 8-Bit
- Speed: 16MHz
- Connectivity: I²C, IrDA, LINbus, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 28
- Program Memory Size: 8KB (8K x 8)
- Program Memory Type: FLASH
- EEPROM Size: 640 x 8
- RAM Size: 1K x 8
- Voltage - Supply (Vcc/Vdd): 2.95V ~ 5.5V
- Data Converters: A/D 7x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 32-LQFP
- Supplier Device Package: 32-LQFP (7x7)
- Base Part Number: STM8S903
- detail: STM8 STM8S Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 32-LQFP (7x7)
