دیتاشیت STD3NK90ZT4
مشخصات دیتاشیت
| نام دیتاشیت | ST(D,P)3NK90Z(FP,-1) |
|---|---|
| حجم فایل | 572.315 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |

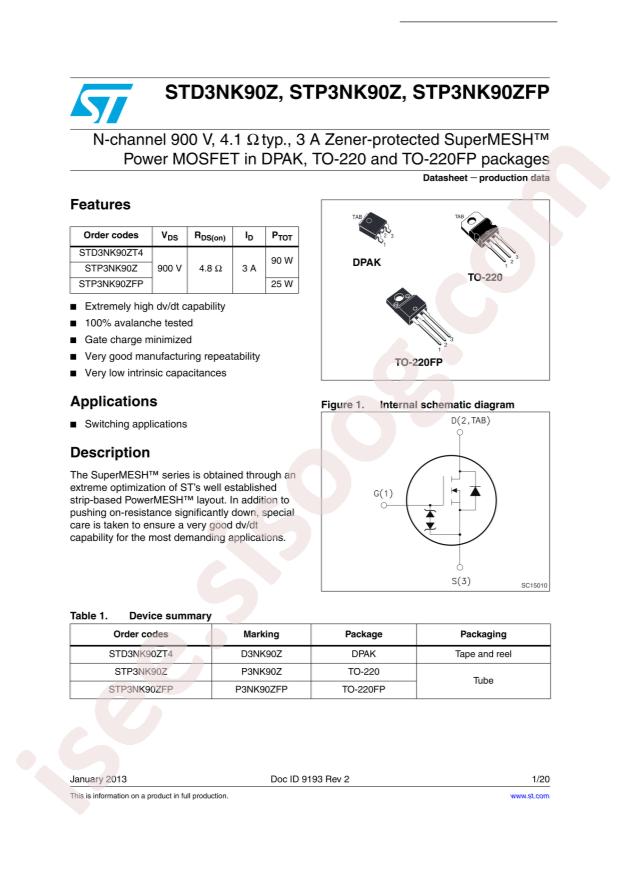

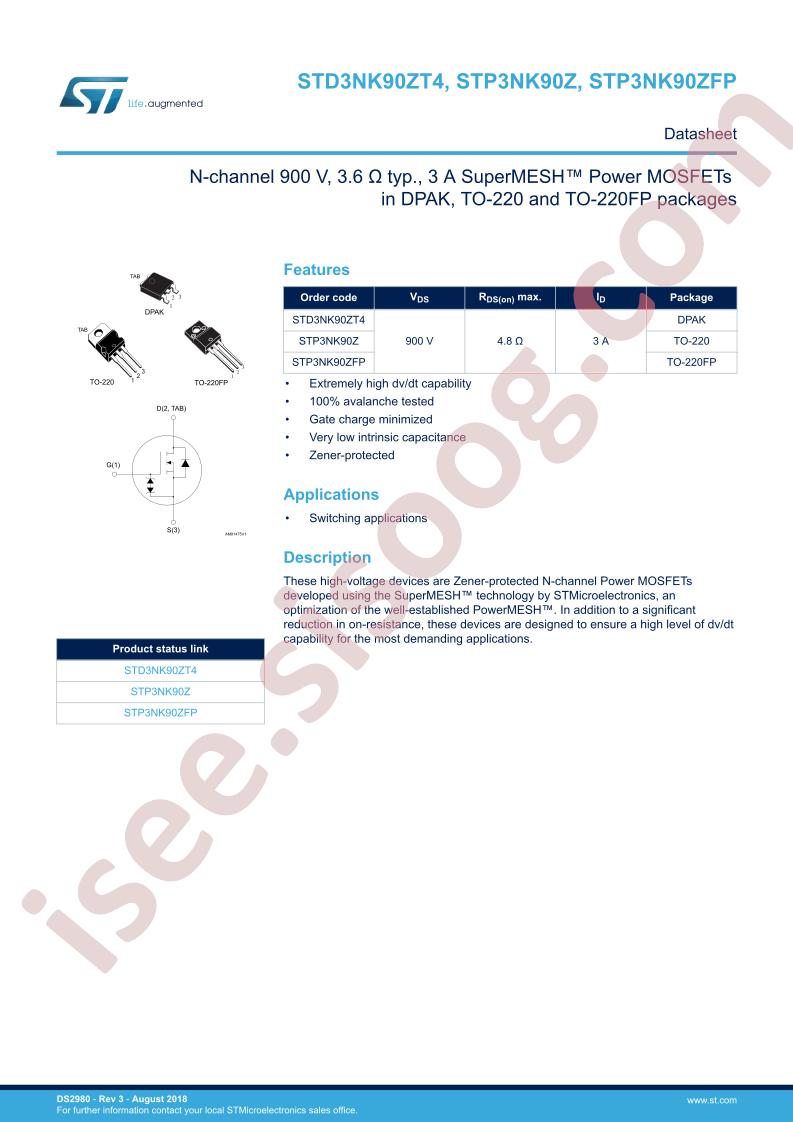

دانلود دیتاشیت ST(D,P)3NK90Z(FP,-1) |
ST(D,P)3NK90Z(FP,-1) Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: STMicroelectronics STD3NK90ZT4
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 90W
- Total Gate Charge (Qg@Vgs): 22.7nC@10V
- Drain Source Voltage (Vdss): 900V
- Input Capacitance (Ciss@Vds): 590pF@25V
- Continuous Drain Current (Id): 3A
- Gate Threshold Voltage (Vgs(th)@Id): 4.5V@50uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 4.8Ω@10V,1.5A
- Package: TO-252-2(DPAK)
- Manufacturer: STMicroelectronics
- Series: SuperMESH™
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 900V
- Current - Continuous Drain (Id) @ 25°C: 3A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.8Ohm @ 1.5A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 50µA
- Gate Charge (Qg) (Max) @ Vgs: 22.7nC @ 10V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 590pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 90W (Tc)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number: STD3N
- detail: N-Channel 900V 3A (Tc) 90W (Tc) Surface Mount DPAK
