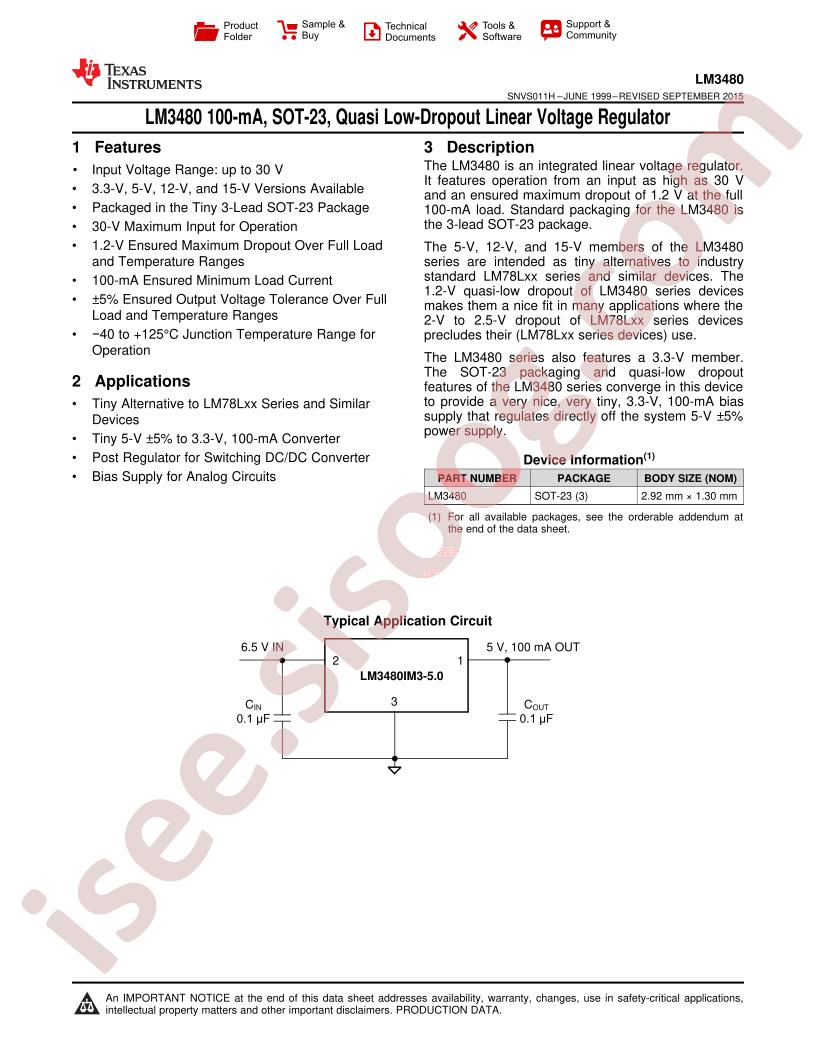

LM3480 Datasheet

LM3480

Datasheet specifications

Datasheet's name LM3480
File size 1309.121 KB
File type pdf
Number of pages 23

Download Datasheet LM3480

Download Datasheet

Other documentations

LM3480IM3X-12/NOPB 23 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments LM3480IM3-15/NOPB
  • Output Current: 100mA
  • Output Voltage: 15V
  • Dropout Voltage: 1.2V@(100mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 35V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 2mA
  • Package: SOT-23-3
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): 30V
  • Current - Quiescent (Iq): 2mA
  • Output Configuration: Positive
  • Base Part Number: LM3480
  • Voltage - Output (Min/Fixed): 15V
  • Protection Features: Over Current, Over Temperature
  • Series: -
  • Packaging: Cut Tape (CT)
  • PSRR: -
  • Supplier Device Package: SOT-23-3
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Number of Regulators: 1
  • Part Status: Active
  • Output Type: Fixed
  • Control Features: -
  • Voltage - Output (Max): -
  • Mounting Type: Surface Mount
  • Voltage Dropout (Max): 1.2V @ 100mA
  • Current - Output: 100mA
  • detail: Linear Voltage Regulator IC 1 Output 100mA SOT-23-3
