BUL39D دیتاشیت

BUL39D

مشخصات دیتاشیت

نام دیتاشیت BUL39D
حجم فایل 59.836 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

مشاهده دیتاشیت BUL39D

دانلود دیتاشیت

سایر مستندات

BUL39D 11 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: STMicroelectronics BUL39D
  • Transistor Type: NPN
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 4A
  • Power Dissipation (Pd): 70W
  • Transition Frequency (fT): -
  • DC Current Gain (hFE@Ic,Vce): 40@5A,10V
  • Collector Cut-Off Current (Icbo): -
  • Collector-Emitter Breakdown Voltage (Vceo): 450V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 1.1V@2.5A,500mA

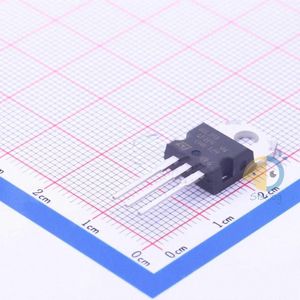

  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Current - Collector (Ic) (Max): 4A
  • Voltage - Collector Emitter Breakdown (Max): 450V
  • Vce Saturation (Max) @ Ib, Ic: 1.1V @ 500mA, 2.5A
  • Current - Collector Cutoff (Max): 100µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 10 @ 10mA, 5V
  • Power - Max: 70W
  • Frequency - Transition: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: BUL39
  • detail: Bipolar (BJT) Transistor NPN 450V 4A 70W Through Hole TO-220AB
