STS6NF20V دیتاشیت

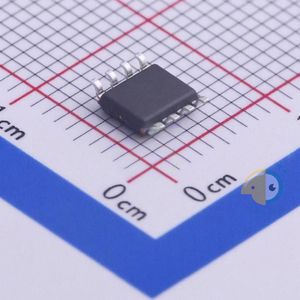

STS6NF20V

مشخصات دیتاشیت

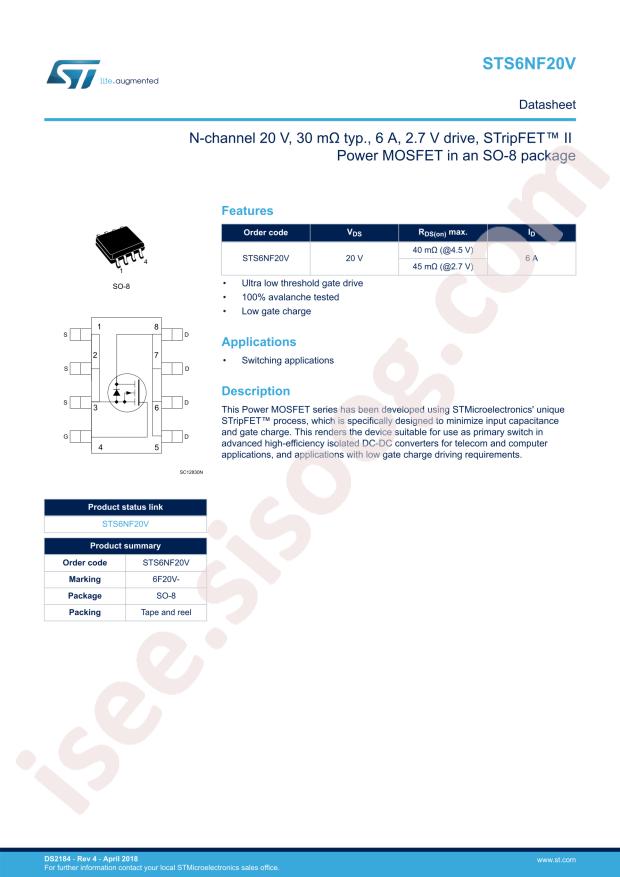

نام دیتاشیت STS6NF20V
حجم فایل 51.106 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

مشاهده دیتاشیت STS6NF20V

دانلود دیتاشیت

سایر مستندات

STS6NF20V 13 pages

STS6NF20V 8 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STS6NF20V
  • Power Dissipation (Pd): 2.5W
  • Total Gate Charge (Qg@Vgs): 11.5nC@4.5V
  • Drain Source Voltage (Vdss): 20V
  • Input Capacitance (Ciss@Vds): 460pF@15V
  • Continuous Drain Current (Id): 6A
  • Gate Threshold Voltage (Vgs(th)@Id): 600mV@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 40mΩ@4.5V,3A
  • Package: SOP-8
  • Manufacturer: STMicroelectronics
  • Series: STripFET™ II
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 20V
  • Current - Continuous Drain (Id) @ 25°C: 6A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 1.95V, 4.5V
  • Rds On (Max) @ Id, Vgs: 40mOhm @ 3A, 4.5V
  • Vgs(th) (Max) @ Id: 600mV @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 11.5nC @ 4.5V
  • Vgs (Max): ±12V
  • Input Capacitance (Ciss) (Max) @ Vds: 460pF @ 15V
  • FET Feature: -
  • Power Dissipation (Max): 2.5W (Tc)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-SO
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Base Part Number: STS6N
  • detail: N-Channel 20V 6A (Tc) 2.5W (Tc) Surface Mount 8-SO
