دیتاشیت SN74LS86AN
مشخصات دیتاشیت
| نام دیتاشیت | SN54,74(LS,S)86(A) |
|---|---|
| حجم فایل | 830.86 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت SN54,74(LS,S)86(A) |

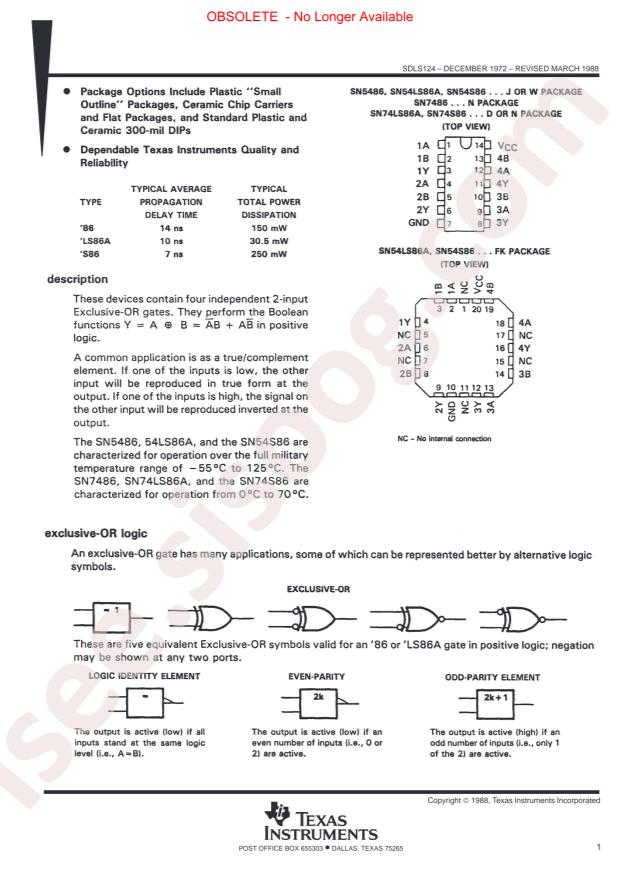

SN54,74(LS,S)86(A) Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LS
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74LS86AN
- Sink Current: 8mA
- Source Current: 400uA
- Supply Voltage: 4.75V~5.25V
- Logic Gate Type: XORGate
- Number of Channels: 4
- Low Level Range (VIL): 0.8V
- Operating Temperature: 0°C~+70°C
- High Level Range (VIH): 2V
- Propagation Delay Time: 30ns@5V,15pF
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Logic Level - Low: 0.8V
- Voltage - Supply: 4.75V ~ 5.25V
- Number of Circuits: 4
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Level - High: 2V
- Part Status: Active
- Current - Output High, Low: 400µA, 8mA
- Features: -
- Base Part Number: SN74LS86
- Supplier Device Package: 14-PDIP
- Number of Inputs: 2
- Logic Type: XOR (Exclusive OR)
- Max Propagation Delay @ V, Max CL: 30ns @ 5V, 15pF
- detail: XOR (Exclusive OR) IC 4 Channel 14-PDIP
